Heater control kammerer for BMW 3 Series E36 320i (1995)

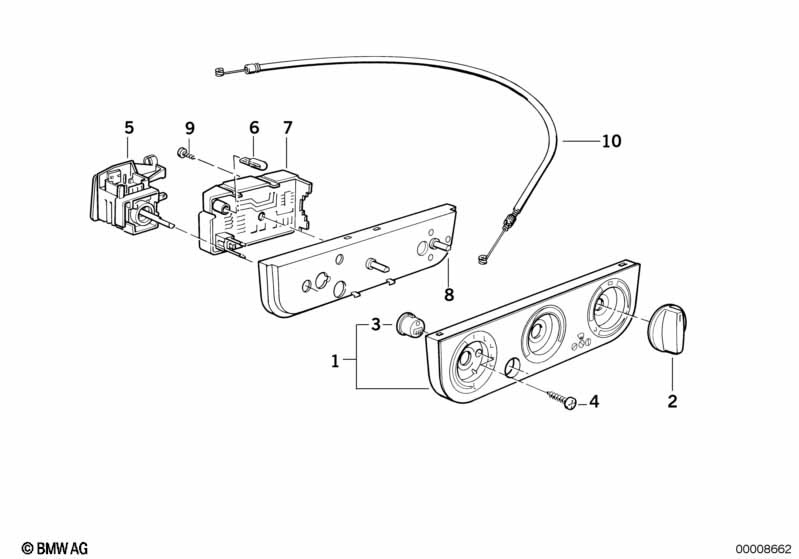

This Heater control kammerer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IDENTIFICATION SEE SI 6407 92(575) | |||||||||
| 01 | Heater control panel | KAMMERER | 1 | 64118391460 | $105.03 | ENDED | Shop at ECS Tuning | |||
| 02 | Knob temperature | 3 | 64111387324 | $25.05 | SI 641491455 | Shop at ECS Tuning | ||||
| 03 | Set caps | 1 | 64118391459 | $53.52 | ENDED | Shop at ECS Tuning | ||||
| 04 | Screw | KB35 X 8 | 2 | 04/1996 | 07149154942 | $0.44 | Shop at ECS Tuning | |||
| 04 | Screw | 2,1X20 | 2 | 61131389045 | $0.28 | Shop at ECS Tuning | ||||
| 05 | Switch blower | 1 | 64111387326 | $146.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 1,2W | 1 | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 07 | Heater control | 1 | 64118368564 | $296.20 | Shop at ECS Tuning | |||||
| COMPRISES AMONG OTHERS PRINTED CIRCUIT BOARD SWITCH HEATED REAR WINDOW |
||||||||||
| 08 | Base plate | 1 | 64111387328 | $153.79 | Shop at ECS Tuning | |||||
| 09 | Screw | 30X12 | 3 | 64111391719 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Bowden cable air refreshing | GELB/SCHWARZ | 1 | 64111387944 | $6.57 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Heater control kammerer?
- This technical diagram illustrates the Heater control kammerer within the Heater and Air Conditioning group for the 3 Series E36 320i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Heater control panel (Part #64118391460).
- Which models use the hardware listed in this Heater control kammerer?
- The hardware and components featured in the Heater control kammerer are specific to the 3 Series E36 320i produced during 1995. These technical specifications ensure that parts like the Heater control panel (64118391460) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater control kammerer assembly?
- Each item in the Heater control kammerer corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Heater control panel by locating its position on the schematic, which then links to the official BMW part number 64118391460 for the Heater and Air Conditioning section.
