Heater radiator automatic air condition for BMW 8 Series E31 850Ci (1997)

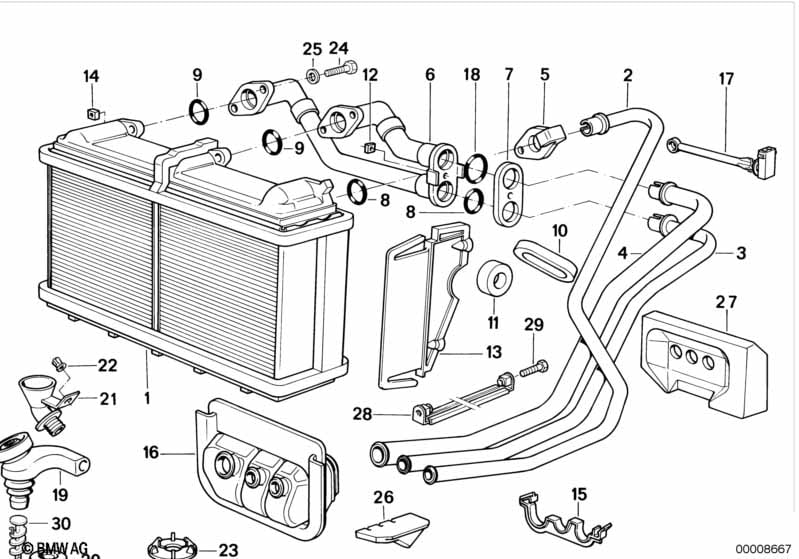

This Heater radiator automatic air condition technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 64118372523 | $200.33 | Shop at ECS Tuning | |||||
| 02 | Pipe | 1 | 64111378203 | $35.77 | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 64111378204 | $28.20 | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 64111374368 | $28.20 | Shop at ECS Tuning | |||||
| 05 | Flange | 1 | 64111374236 | $4.02 | Shop at ECS Tuning | |||||
| 06 | Pipe | 1 | 64118372524 | $73.03 | Shop at ECS Tuning | |||||
| 07 | Flange | 1 | 64111378756 | $4.02 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | D=13,98MM | 2 | 64111374238 | $1.82 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | D=20,29MM | 2 | 64118390266 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket ring | 1 | 64111374369 | $2.24 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | 1 | 64111374370 | $1.07 | Shop at ECS Tuning | |||||
| 13 | Cover | 1 | 64111374371 | $7.56 | Shop at ECS Tuning | |||||
| 14 | Square nut | M5 | 5 | 07119921431 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 64111374397 | $4.12 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rubber grommet | 1 | 64118390864 | $19.78 | ENDED | Shop at ECS Tuning | ||||
| 17 | Temperature sensor, heater | 1 | 64111374242 | $33.45 | Shop at ECS Tuning | |||||
| 18 | Gasket ring | D=17.12MM | 1 | 64118377824 | $1.82 | Shop at ECS Tuning | ||||
| 19 | Water drain, left | 1 | 64111374133 | $13.89 | Shop at ECS Tuning | |||||
| 19 | Water drain, right | 1 | 64111374134 | $13.89 | Shop at ECS Tuning | |||||
| 19 | Water drain, left | 1 | 64118391145 | $10.86 | Shop at ECS Tuning | |||||
| 19 | Water drain, right | 1 | 64118391146 | $10.86 | Shop at ECS Tuning | |||||
| 20 | Rubber grommet | 2 | 64111378311 | $1.23 | Shop at ECS Tuning | |||||
| 20 | Fastening elements | WEIß | 2 | 64118391251 | Shop at ECS Tuning | |||||
| 21 | Funnel | 2 | 64111378307 | $1.37 | Shop at ECS Tuning | |||||
| 22 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 23 | Lock Ring | 2 | 64111379296 | $0.88 | Shop at ECS Tuning | |||||
| 25 | Spring washer | B5 | 6 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 26 | Gasket | 1 | 64111382361 | $34.45 | Shop at ECS Tuning | |||||
| 27 | Gasket | 1 | 64111382440 | $39.34 | ENDED | Shop at ECS Tuning | ||||
| 30 | Absorber | 1 | 64118369604 | $0.67 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Heater radiator automatic air condition?
- This technical diagram illustrates the Heater radiator automatic air condition within the Heater and Air Conditioning group for the 8 Series E31 850Ci produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Heater radiator (Part #64118372523).
- Which models use the hardware listed in this Heater radiator automatic air condition?
- The hardware and components featured in the Heater radiator automatic air condition are specific to the 8 Series E31 850Ci produced during 1997. These technical specifications ensure that parts like the Heater radiator (64118372523) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater radiator automatic air condition assembly?
- Each item in the Heater radiator automatic air condition corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Heater radiator by locating its position on the schematic, which then links to the official BMW part number 64118372523 for the Heater and Air Conditioning section.
