Microfiltre/microfiltrecover for BMW 3 Series E36 318i (1999)

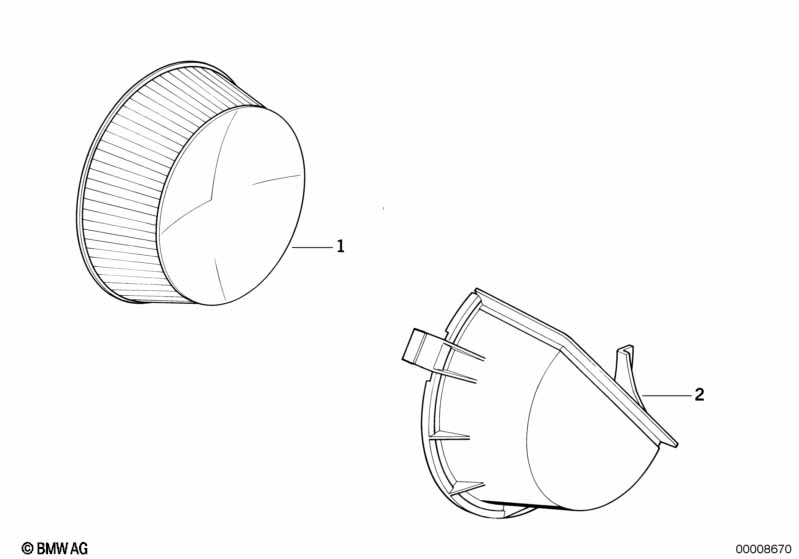

This Microfiltre/microfiltrecover technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO HEATER | ||||||||||
| 01 | Supplementary set microfilter | 1 | 64119404386 | $69.50 | Shop at ECS Tuning | |||||
| 02 | Covering cap left | 1 | 64118390831 | $23.55 | Shop at ECS Tuning | |||||
| 02 | Covering cap right | 1 | 64118390832 | $22.87 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO HEATER | ||||||||||
| 02 | Covering cap left | 1 | 64118390831 | $23.55 | Shop at ECS Tuning | |||||
| 02 | Covering cap right | 1 | 64118390832 | $22.87 | Shop at ECS Tuning | |||||
| For vehicles with Microfilter ONLY APPLIES TO HEATER |
=Yes |
|||||||||
| 02 | Covering cap left | 1 | 64118390833 | ENDED | Shop at ECS Tuning | |||||
| 02 | Covering cap right | 1 | 64118390834 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Microfiltre/microfiltrecover?
- This technical diagram illustrates the Microfiltre/microfiltrecover within the Heater and Air Conditioning group for the 3 Series E36 318i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Supplementary set microfilter (Part #64119404386).
- Which models use the hardware listed in this Microfiltre/microfiltrecover?
- The hardware and components featured in the Microfiltre/microfiltrecover are specific to the 3 Series E36 318i produced during 1999. These technical specifications ensure that parts like the Supplementary set microfilter (64119404386) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Microfiltre/microfiltrecover assembly?
- Each item in the Microfiltre/microfiltrecover corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Supplementary set microfilter by locating its position on the schematic, which then links to the official BMW part number 64119404386 for the Heater and Air Conditioning section.
