Heater control with microfilter for BMW 5 Series E34 525td (1996)

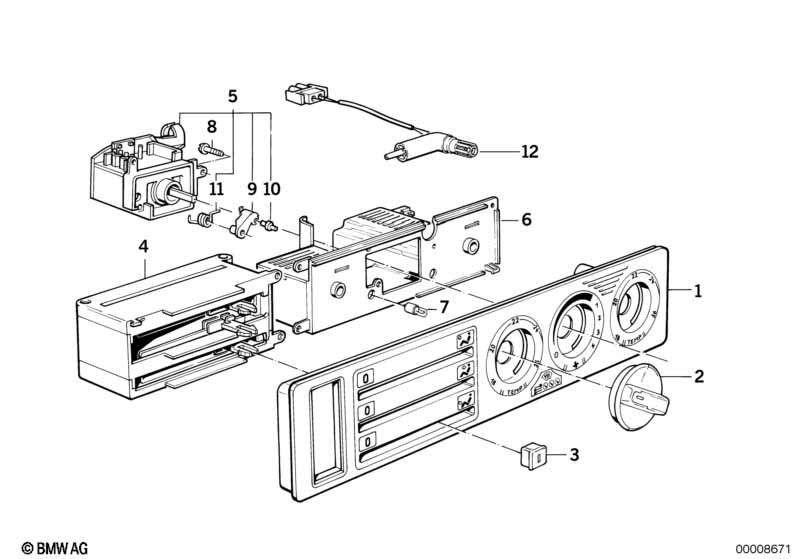

This Heater control with microfilter technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater control panel | 1 | 09/1993 | 64111384294 | $101.62 | Shop at ECS Tuning | ||||
| 02 | Knob temperature | 3 | 09/1993 | 64111384292 | $117.73 | Shop at ECS Tuning | ||||
| 03 | Button | 3 | 09/1993 | 64111384293 | $12.26 | Shop at ECS Tuning | ||||
| 04 | Heater control | 1 | 09/1993 | 64111384295 | $74.49 | Shop at ECS Tuning | ||||
| 05 | Switch blower | 1 | 09/1993 | 64111384296 | $146.18 | Shop at ECS Tuning | ||||
| 06 | Control unit f heater control | HR34 | 1 | 09/1993 | 64118351653 | Shop at ECS Tuning | ||||
| For vehicles with Nordic countries version |
=Yes |
|||||||||
| 06 | Control unit f heater control | 1 | 09/1993 | 64111389058 | Shop at ECS Tuning | |||||
| 07 | Bulb | 12V 1,2W | 1 | 09/1993 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 08 | Fillister head screw | M2,5X10 | 6 | 09/1993 | 07119906429 | $1.39 | Shop at ECS Tuning | |||
| 09 | Lever | 1 | 09/1993 | 64111384361 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 10 | Roll pin | 1 | 09/1993 | 64111384362 | $0.67 | ENDED | Shop at ECS Tuning | |||
| 11 | Spring | 1 | 09/1993 | 64111384363 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 12 | Temperature sensor passenger room | 1 | 09/1993 | 64118390098 | $16.96 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
