Housing parts automatic air conditioning for BMW 5 Series E34 525tds (1996)

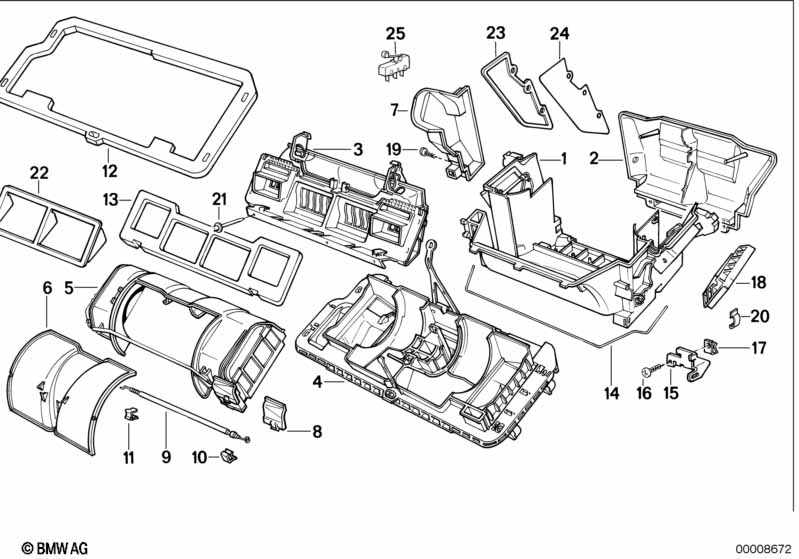

This Housing parts automatic air conditioning technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing bottom | 1 | 06/1990 | 64111390832 | $209.43 | Shop at ECS Tuning | ||||
| 02 | Housing rear | 1 | 06/1990 | 64111374322 | $76.60 | ENDED | Shop at ECS Tuning | |||
| 03 | Housing center | 1 | 06/1990 | 64111384211 | $529.29 | ENDED | Shop at ECS Tuning | |||
| 04 | Housing lower part | 1 | 06/1990 | 64111390833 | $195.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Housing upper part | 1 | 06/1990 | 64118350029 | $194.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | 1 | 06/1990 | 64118350030 | $12.84 | ENDED | Shop at ECS Tuning | |||
| 07 | Evaporator cover | 1 | 06/1990 | 64111390834 | $25.25 | Shop at ECS Tuning | ||||
| 08 | Cap | 1 | 06/1990 | 64111374348 | $1.25 | ENDED | Shop at ECS Tuning | |||
| 09 | Bowden cable | 1 | 06/1990 | 64111374363 | $15.37 | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 06/1990 | 64111358563 | $1.83 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1 | 06/1990 | 64111368019 | $1.12 | Shop at ECS Tuning | ||||
| 12 | Sealing frame | 1 | 06/1990 | 64111374357 | $51.18 | Shop at ECS Tuning | ||||
| 13 | Gasket | 1 | 06/1990 | 64118390802 | $40.64 | Shop at ECS Tuning | ||||
| 14 | Rubber seal | 1500MM | 1 | 06/1990 | 64111374109 | $7.15 | Shop at ECS Tuning | |||
| 15 | Bracket left | 1 | 06/1990 | 64111378759 | $5.77 | Shop at ECS Tuning | ||||
| 15 | Bracket right | 1 | 06/1990 | 64111378760 | $5.82 | Shop at ECS Tuning | ||||
| 16 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 06/1990 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | ||
| 17 | Body nut | ST4,8-9-ZNS3 | 2 | 06/1990 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 18 | Gasket | 1 | 06/1990 | 64111379577 | $28.07 | Shop at ECS Tuning | ||||
| 20 | Clamp | X | 06/1990 | 64111370938 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Rivet | 4-4A | 4 | 06/1990 | 07129948750 | $0.21 | Shop at ECS Tuning | |||
| 22 | Intermediate piece | 1 | 06/1990 | 64111389395 | $14.40 | Shop at ECS Tuning | ||||
| 23 | Cover | 1 | 06/1990 | 64111390835 | $13.61 | ENDED | Shop at ECS Tuning | |||
| 24 | Gasket | 1 | 06/1990 | 64118350039 | $1.32 | ENDED | Shop at ECS Tuning | |||
| 25 | Microswitch | 1 | 06/1990 | 64111363872 | $16.42 | ENDED | Shop at ECS Tuning |
