Heater radiator air condit.with microfil for BMW 5 Series E34 525ix (1995)

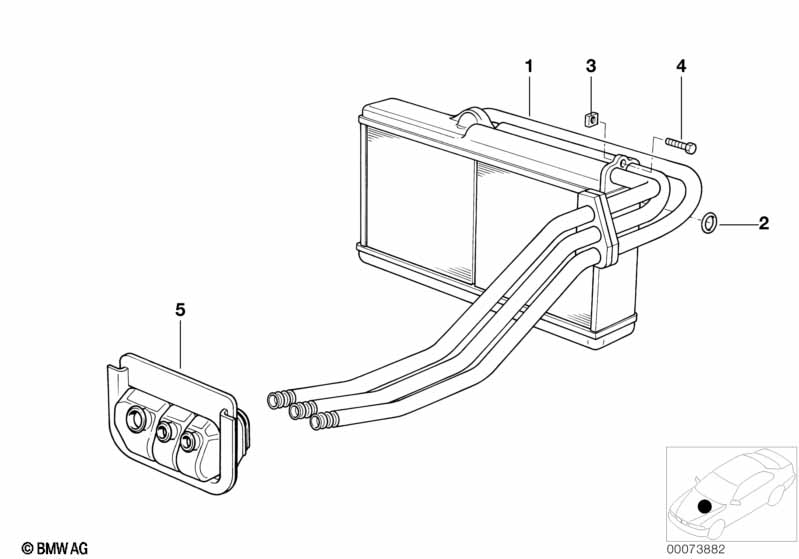

This Heater radiator air condit.with microfil technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 01/1990 | 64118351171 | $234.32 | Shop at ECS Tuning | ||||
| only in conjunction with radiator cap | ||||||||||
| 02 | Gasket ring | D=20,29MM | 2 | 01/1990 | 11/1997 | 64118379131 | $0.51 | Shop at ECS Tuning | ||
| 02 | Gasket ring | D=13,98MM | 2 | 01/1990 | 64111374238 | $1.82 | Shop at ECS Tuning | |||
| 02 | Gasket ring | D=17.12MM | 1 | 01/1990 | 64118377824 | $1.82 | Shop at ECS Tuning | |||
| 03 | Square nut | M5 | 5 | 01/1990 | 07119921431 | $0.36 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M5X20-8.8 ZNS | 6 | 01/1990 | 07119913116 | $1.20 | Shop at ECS Tuning | |||
| 05 | Rubber grommet | 1 | 64118390864 | $19.78 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
