Heater radiator Siemens/microfilter for BMW 5 Series E34 525tds (1995)

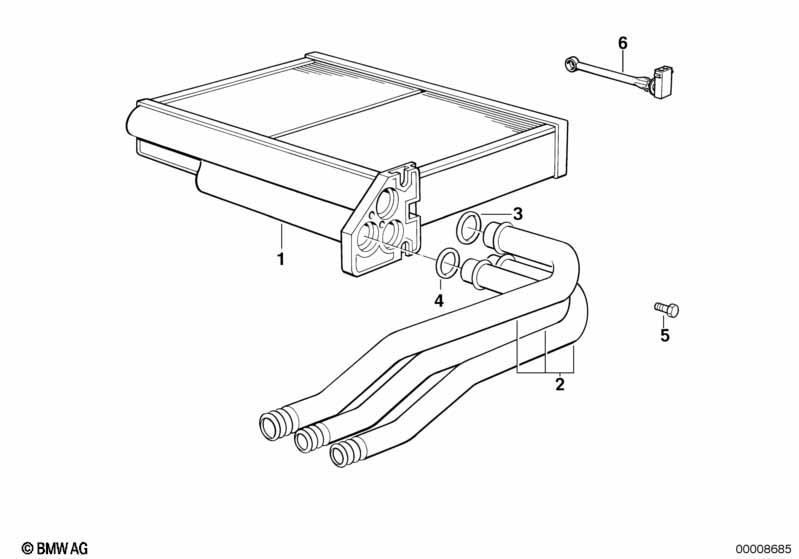

This Heater radiator Siemens/microfilter technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 09/1993 | 64118391912 | $196.42 | Shop at ECS Tuning | ||||
| 02 | Pipe | 1 | 09/1993 | 64118391913 | $25.11 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=17.12MM | 1 | 09/1993 | 64118377824 | $1.82 | Shop at ECS Tuning | |||
| 04 | Gasket ring | D=13,98MM | 2 | 09/1993 | 64111374238 | $1.82 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M5X16 | 1 | 09/1993 | 07119913241 | $0.18 | ENDED | Shop at ECS Tuning | ||
| 06 | Temperature sensor, heater | 1 | 09/1993 | 64111374242 | $33.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
