Air channel for BMW 3 Series E36 323ti (2000)

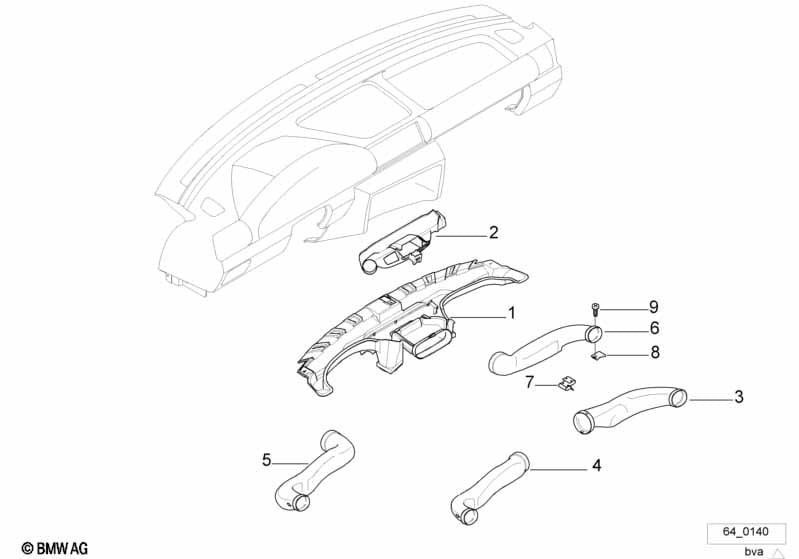

This Air channel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater duct | 1 | 64228146258 | $14.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 64228146260 | $16.07 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cold air duct right | 1 | 64228146274 | $9.44 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cold air duct left | 1 | 64228146273 | $9.57 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 05 | Heater duct left | 1 | 64228146175 | $28.74 | Shop at ECS Tuning | |||||
| 06 | Heater duct right | 1 | 64228146176 | $28.74 | Shop at ECS Tuning | |||||
| 07 | Clamp | X | 51431852731 | $0.52 | ENDED | Shop at ECS Tuning | ||||
| 08 | Body nut | ST4,2-2ZNS | X | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,2X16-Z2 | X | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
