Outflow nozzles/covers for BMW 3 Series E36 318ti (1996)

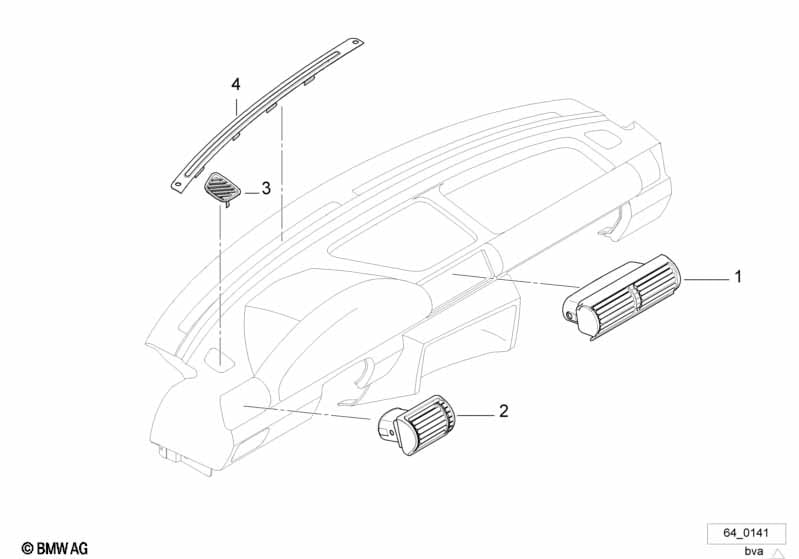

This Outflow nozzles/covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fresh air grille center | 1 | 64228390216 | $97.04 | +core | Shop at ECS Tuning | ||||
| 02 | Fresh air grille, left | 1 | 64228390217 | $23.57 | Shop at ECS Tuning | |||||
| 02 | Fresh air grille, right | 1 | 64228390218 | $23.57 | Shop at ECS Tuning | |||||
| 03 | Covering left | SANDGRAU | 1 | 64228185751 | $2.78 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering right | SANDGRAU | 1 | 64228185752 | $3.91 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | ANTHRAZIT | 1 | 64228185753 | $2.78 | Shop at ECS Tuning | ||||
| 03 | Covering right | ANTHRAZIT | 1 | 64228185754 | $2.78 | Shop at ECS Tuning | ||||
| 04 | Covering defroster nozzle left | SANDGRAU | 1 | 64228185727 | $9.95 | Shop at ECS Tuning | ||||
| 04 | Covering defroster nozzle left | ANTHRAZIT | 1 | 64228185729 | $9.95 | Shop at ECS Tuning | ||||
| 04 | Covering defroster nozzle right | SANDGRAU | 1 | 64228185730 | $9.95 | Shop at ECS Tuning | ||||
| 04 | Covering defroster nozzle right | ANTHRAZIT | 1 | 64228185732 | $9.95 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
