Water valve/Water hose for BMW Z3 E36 M

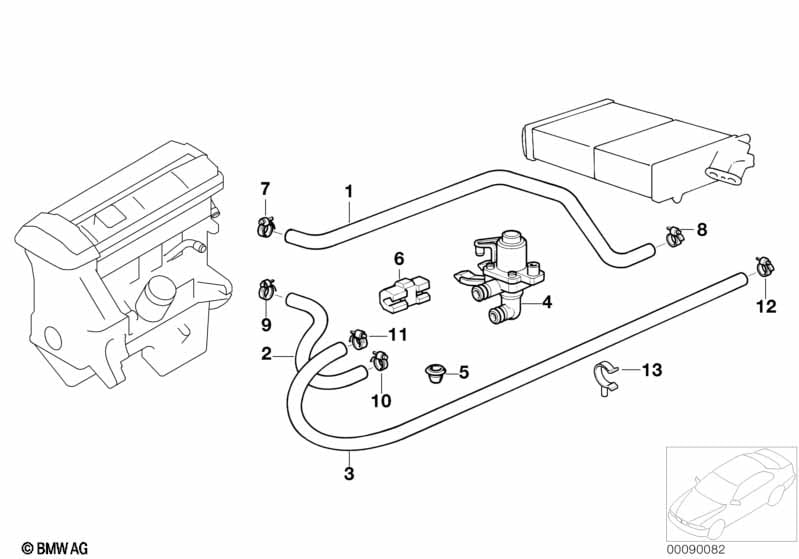

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the Z3 E36 M. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f radiator and engine return | 1 | 64212229843 | $21.89 | Shop at ECS Tuning | |||||
| 02 | Hose f engine inlet and water valve | 1 | 64212229844 | $33.96 | Shop at ECS Tuning | |||||
| 03 | Hose f water valve and radiator | 1 | 64212229845 | $22.93 | Shop at ECS Tuning | |||||
| 04 | Water valve with additional water pump | 1 | 64118369807 | $248.88 | Shop at ECS Tuning | |||||
| 05 | Grommet | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 1 | 64111387472 | $4.12 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Hose clamp, inlet | 1 | 64212229718 | $1.98 | Shop at ECS Tuning |
