Housing parts, heater Behr for BMW 3 Series E36 318ti (1995)

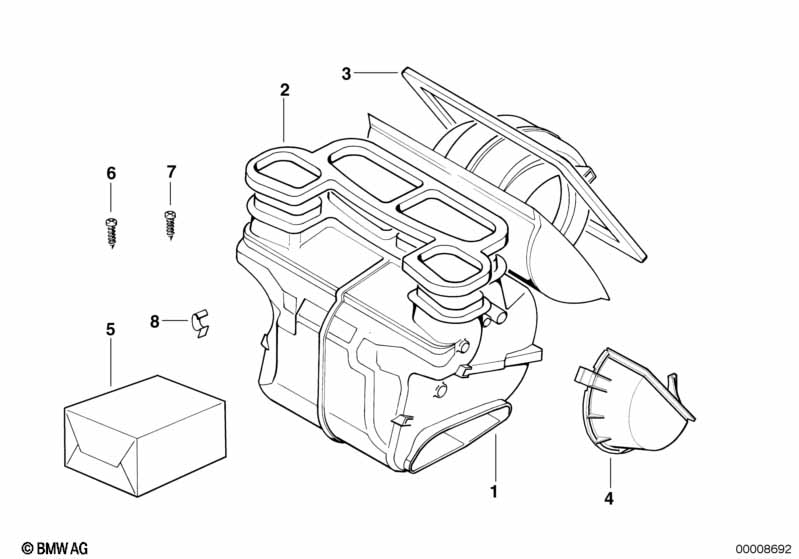

This Housing parts, heater Behr technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing f heater | 1 | 64118390214 | $175.21 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sealing frame | 1 | 64118390242 | $6.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sealing frame | 1 | 64118390238 | $16.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering cap left | 1 | 64118367785 | $1.69 | Shop at ECS Tuning | |||||
| 04 | Covering cap right | 1 | 64118367786 | $1.69 | ENDED | Shop at ECS Tuning | ||||
| 05 | Set of small parts f heater adjust.lever | BEHR | 1 | 64118390245 | $7.03 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister head screw | ISA 4X14MM | 2 | 51167072159 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw with collar | M4X14 | 6 | 46637659479 | $1.20 | Shop at ECS Tuning | ||||
| 08 | Clamp | X | 64111370938 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Housing parts, heater Behr?
- This technical diagram illustrates the Housing parts, heater Behr within the Heater and Air Conditioning group for the 3 Series E36 318ti produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Empty housing f heater (Part #64118390214).
- Which models use the hardware listed in this Housing parts, heater Behr?
- The hardware and components featured in the Housing parts, heater Behr are specific to the 3 Series E36 318ti produced during 1995. These technical specifications ensure that parts like the Empty housing f heater (64118390214) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Housing parts, heater Behr assembly?
- Each item in the Housing parts, heater Behr corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Empty housing f heater by locating its position on the schematic, which then links to the official BMW part number 64118390214 for the Heater and Air Conditioning section.
