Frame front for BMW 3 Series E21 320 (1977)

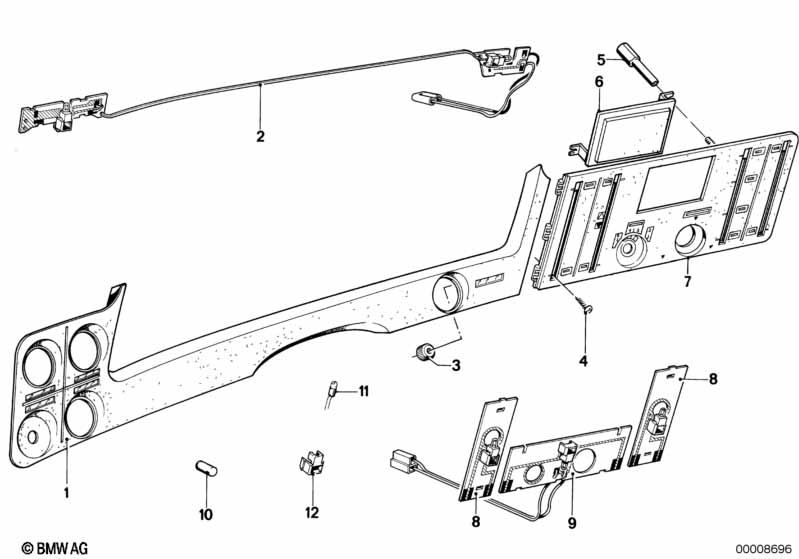

This Frame front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch panel | 1 | 08/1979 | 64111359889 | ENDED | Shop at ECS Tuning | ||||
| 02 | Panel | 1 | 08/1979 | 64111363314 | ENDED | Shop at ECS Tuning | ||||
| 03 | Knurled head nut | M5 | 2 | 08/1979 | 62148480019 | $3.68 | Shop at ECS Tuning | |||
| 04 | Recessed oval head sheet-metal screw | ST2,9X16 | 8 | 08/1979 | 07119902423 | $0.36 | Shop at ECS Tuning | |||
| 07 | Panel | 1 | 08/1977 | 64111359786 | ENDED | Shop at ECS Tuning | ||||
| 08 | Panel | 2 | 08/1979 | 64111363311 | $18.13 | Shop at ECS Tuning | ||||
| 09 | Panel center | 1 | 08/1979 | 64111363312 | $27.48 | Shop at ECS Tuning | ||||
| 10 | Absorbing piece | 8 | 08/1979 | 64111363499 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bulb | 1,1W | 5 | 08/1979 | 64111359060 | $6.24 | ENDED | Shop at ECS Tuning | ||
| 12 | Bulb socket | 5 | 08/1979 | 64111359059 | $1.86 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Frame front?
- This technical diagram illustrates the Frame front within the Heater and Air Conditioning group for the 3 Series E21 320 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Switch panel (Part #64111359889).
- Which models use the hardware listed in this Frame front?
- The hardware and components featured in the Frame front are specific to the 3 Series E21 320 produced during 1977. These technical specifications ensure that parts like the Switch panel (64111359889) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Frame front assembly?
- Each item in the Frame front corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Switch panel by locating its position on the schematic, which then links to the official BMW part number 64111359889 for the Heater and Air Conditioning section.
