Actuator for automatic air condition for BMW 7 Series E38 728i (1998)

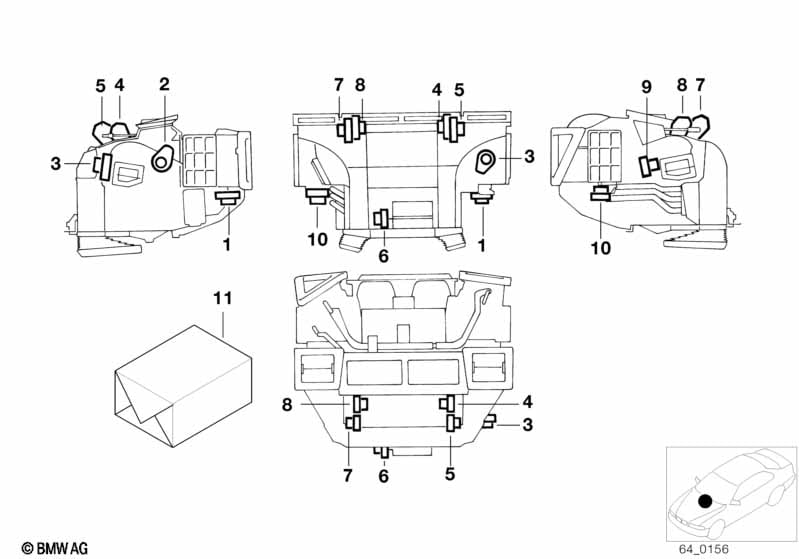

This Actuator for automatic air condition technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator f fresh air flap | 1 | 64116908979 | $82.13 | Shop at ECS Tuning | |||||
| 02 | Actuator defroster flaps | 1 | 64116939408 | $84.73 | +core | Shop at ECS Tuning | ||||
| 03 | Actuator foot room flaps | 1 | 64116939406 | $95.12 | Shop at ECS Tuning | |||||
| 04 | Actuator, air distribution flap, right | 1 | 64116939407 | $95.12 | Shop at ECS Tuning | |||||
| 05 | Actuator f right ventilation flap | 1 | 64116939405 | $82.13 | Shop at ECS Tuning | |||||
| Only applies to rear compartment flap | ||||||||||
| 06 | Actuator | 1 | 64116934821 | $82.13 | Shop at ECS Tuning | |||||
| suitable only for vent flap, left | ||||||||||
| 07 | Actuator | 1 | 64116934825 | $82.13 | Shop at ECS Tuning | |||||
| 08 | Actuator for ventilation flap | 1 | 64116939403 | $95.12 | Shop at ECS Tuning | |||||
| 09 | Actuator foot room flaps | 1 | 64116939406 | $95.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO AIR RECYCLING FLAP | ||||||||||
| 10 | Actuator | 1 | 64116934822 | $82.13 | Shop at ECS Tuning | |||||
| 11 | Set small parts f air cond.adjust.lever | BEHR | 1 | 64118391576 | $66.80 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728i Actuator for automatic air condition?
- This technical diagram illustrates the Actuator for automatic air condition within the Heater and Air Conditioning group for the 7 Series E38 728i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Actuator f fresh air flap (Part #64116908979).
- Which models use the hardware listed in this Actuator for automatic air condition?
- The hardware and components featured in the Actuator for automatic air condition are specific to the 7 Series E38 728i produced during 1998. These technical specifications ensure that parts like the Actuator f fresh air flap (64116908979) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Actuator for automatic air condition assembly?
- Each item in the Actuator for automatic air condition corresponds to the numbered list below the illustration. For the 7 Series E38 728i, you can identify the Actuator f fresh air flap by locating its position on the schematic, which then links to the official BMW part number 64116908979 for the Heater and Air Conditioning section.
