Heater control/bowden cable/behr for BMW 3 Series E21 320 (1977)

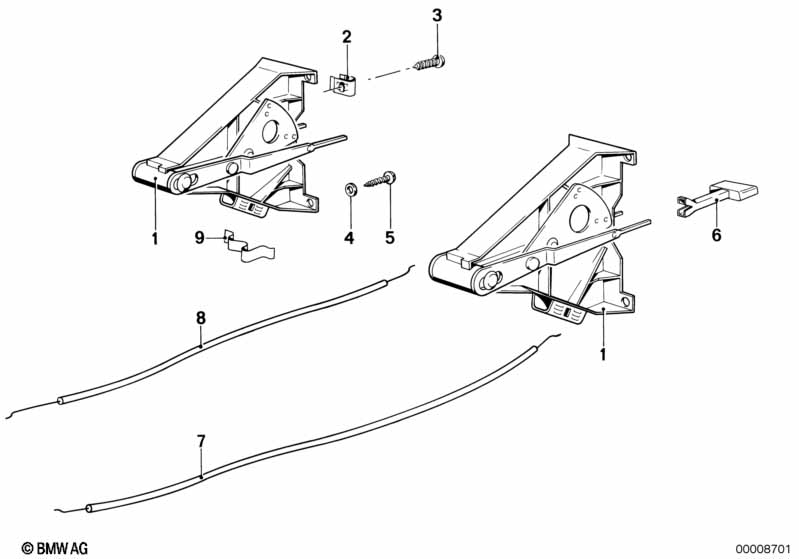

This Heater control/bowden cable/behr technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater control left | BEHR | 1 | 08/1979 | 64111364317 | $64.98 | Shop at ECS Tuning | |||
| 01 | Heater control right | BEHR | 1 | 08/1979 | 64111364318 | $64.98 | ENDED | Shop at ECS Tuning | ||
| 02 | Body nut | 8 | 08/1979 | 64111358487 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 03 | Recessed oval head sheet-metal screw | ST2,9X19 | 4 | 08/1979 | 07119902421 | $0.07 | Shop at ECS Tuning | |||
| 04 | Washer | 3,2 | 4 | 08/1979 | 07119936407 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST2,9X13 | 4 | 08/1979 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 06 | Button | 4 | 08/1977 | 08/1979 | 64111362832 | $6.83 | ENDED | Shop at ECS Tuning | ||
| 07 | Bowden cable temperature control | 1 | 08/1979 | 64111358568 | $8.80 | ENDED | Shop at ECS Tuning | |||
| 07 | Bowden cable air distribution | 1 | 08/1979 | 64111358569 | $8.80 | ENDED | Shop at ECS Tuning | |||
| 08 | Bowden cable fresh air left | 1 | 08/1979 | 64111358570 | $8.80 | Shop at ECS Tuning | ||||
| 08 | Bowden cable fresh air right | 1 | 08/1979 | 64111358571 | $13.03 | Shop at ECS Tuning | ||||
| 09 | Clamp | 8 | 08/1979 | 64111358563 | $1.83 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
