Heater radiator/housing sofica for BMW 3 Series E21 320 (1977)

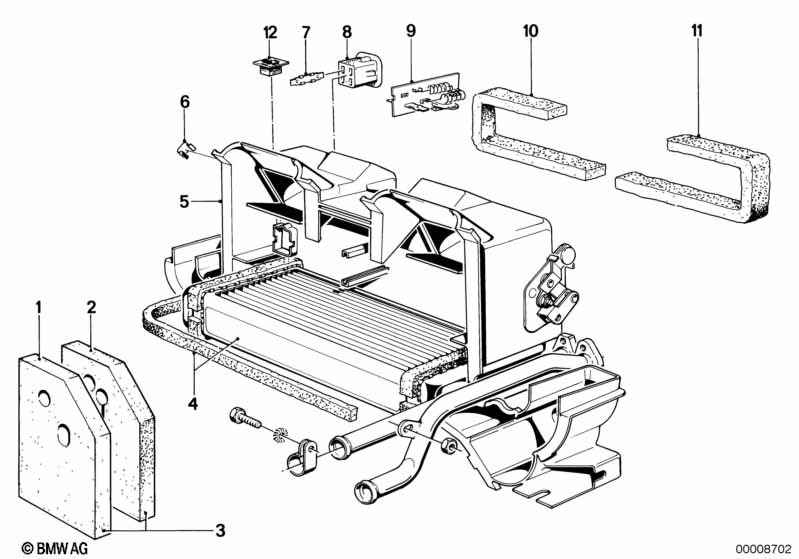

This Heater radiator/housing sofica technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sofica | |||||||||
| 01 | Gasket | 1 | 08/1979 | 64111365809 | $3.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | 1 | 08/1979 | 64111365809 | $3.18 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 08/1979 | 64111365809 | $3.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Heater radiator | 1 | 08/1979 | 64111366592 | $210.92 | ENDED | Shop at ECS Tuning | |||
| 05 | Housing | 1 | 08/1979 | 64119061517 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clamp | X | 64111358890 | $0.79 | Shop at ECS Tuning | |||||
| 07 | Flat-type connector | 4 | 61138061782 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plug terminal heater fan | 1 | 64111355785 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 09 | Resistor | SOFICA | 1 | 64111380029 | $102.24 | Shop at ECS Tuning | ||||
| 10 | Gasket left | 1 | 64111360579 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket right | 1 | 64111360580 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
