Water valve for BMW 3 Series E21 320i (1978)

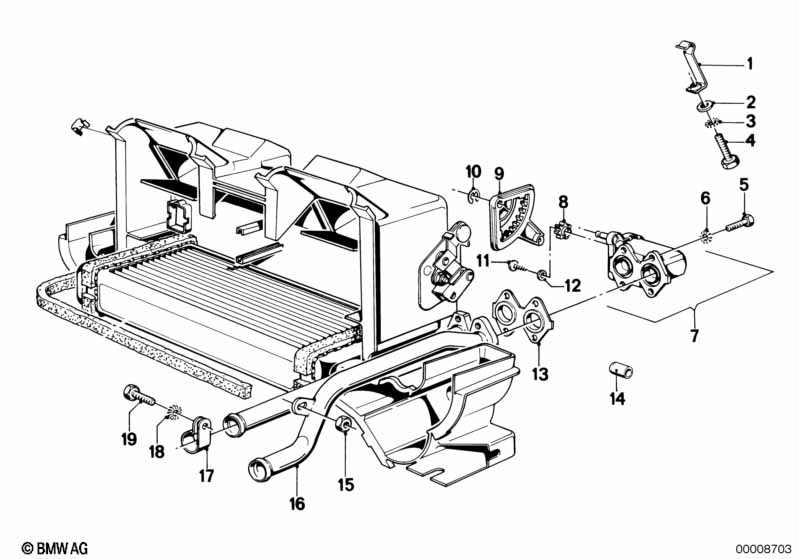

This Water valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sofica | |||||||||
| 01 | Fixing clamp | 1 | 64111360078 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Tooth washer | A6,4 | 1 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X35 | 1 | 07119913579 | $0.24 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M5X16 | 4 | 08/1979 | 07119913241 | $0.18 | ENDED | Shop at ECS Tuning | ||
| 06 | Tooth washer | A5,1 | 4 | 08/1979 | 07119936107 | $0.18 | Shop at ECS Tuning | |||
| 07 | Water valve | 1 | 08/1979 | 64111358880 | $82.66 | Shop at ECS Tuning | ||||
| 08 | Gear wheel | 1 | 08/1979 | 64111359278 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 09 | Tooth segment | 1 | 08/1979 | 64111358881 | $2.73 | ENDED | Shop at ECS Tuning | |||
| 10 | Circlip | 5-ZNS3 | 1 | 08/1979 | 07119904660 | $0.38 | Shop at ECS Tuning | |||
| 11 | Fillister head screw | M3X6 | 1 | 08/1979 | 07119907600 | $0.09 | Shop at ECS Tuning | |||
| 12 | Washer | A3,2 | 1 | 08/1979 | 07119931015 | $0.09 | Shop at ECS Tuning | |||
| 13 | Gasket | 1 | 08/1979 | 64111360601 | $9.92 | Shop at ECS Tuning | ||||
| 14 | Guide | 2 | 64111360600 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex nut | M4-A2-70 | 1 | 07119922854 | Shop at ECS Tuning | |||||
| 16 | Pipe | 1 | 08/1979 | 64111359716 | $40.73 | Shop at ECS Tuning | ||||
| 17 | Clamp | 1 | 08/1979 | 64111358886 | ENDED | Shop at ECS Tuning | ||||
| 18 | Tooth washer | A4,3 | 1 | 08/1979 | 07119936037 | $0.36 | Shop at ECS Tuning | |||
| 19 | Hex bolt | M4X12 | 1 | 08/1979 | 07119913084 | $0.11 | ENDED | Shop at ECS Tuning | ||
