Housing parts, heater Behr for BMW 3 Series E21 320 (1982)

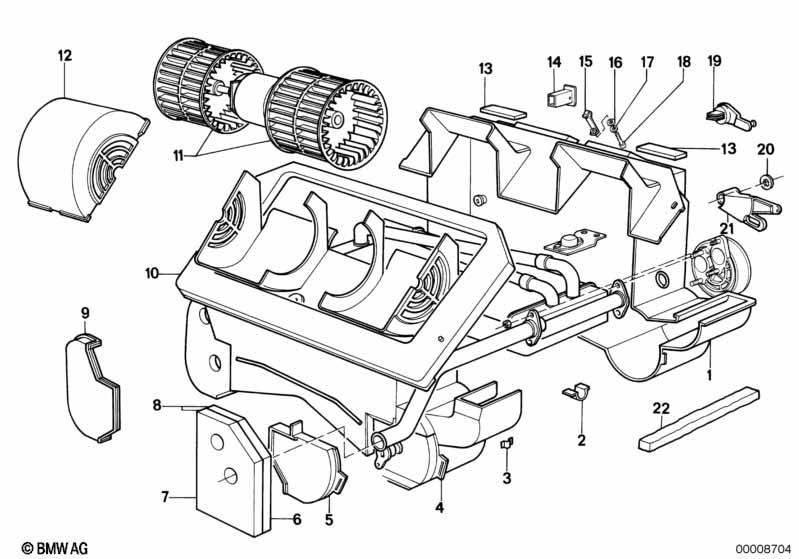

This Housing parts, heater Behr technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Behr | |||||||||
| 01 | Housing half rear | 1 | 08/1979 | 64111366677 | $175.21 | ENDED | Shop at ECS Tuning | |||
| 02 | Clamp | 8 | 64111354630 | $0.38 | Shop at ECS Tuning | |||||
| 03 | Clamp | 5 | 64111355720 | $1.68 | Shop at ECS Tuning | |||||
| 04 | Housing half front | 1 | 08/1979 | 64111366678 | $113.83 | ENDED | Shop at ECS Tuning | |||
| 05 | Box left | 1 | 08/1979 | 64111366681 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket | 1 | 08/1979 | 64111366668 | $4.35 | ENDED | Shop at ECS Tuning | |||
| 09 | Box right | 1 | 08/1979 | 64111367346 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sealing frame | 1 | 64111355684 | $52.42 | ENDED | Shop at ECS Tuning | ||||
| 11 | Blower unit | BEHR | 1 | 64111354618 | $351.41 | Shop at ECS Tuning | ||||
| 12 | Blower upper part left | 1 | 08/1979 | 64111369103 | $15.85 | Shop at ECS Tuning | ||||
| 12 | Blower upper part right | 1 | 08/1979 | 64111369104 | $16.88 | Shop at ECS Tuning | ||||
| 13 | Gasket | 2 | 64111355685 | $0.66 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug terminal heater fan | 1 | 64111355785 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 15 | Fixing clamp | 1 | 64111360078 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 16 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 17 | Spring washer | B6 | 1 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X35 | 1 | 07119913579 | $0.24 | Shop at ECS Tuning | ||||
| 19 | Lever | 1 | 08/1979 | 64111366688 | $8.80 | ENDED | Shop at ECS Tuning | |||
| 22 | Sealing strip | 2 | 64111358561 | $0.61 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
