Heater control Siemens for BMW 7 Series E32 730i (1994)

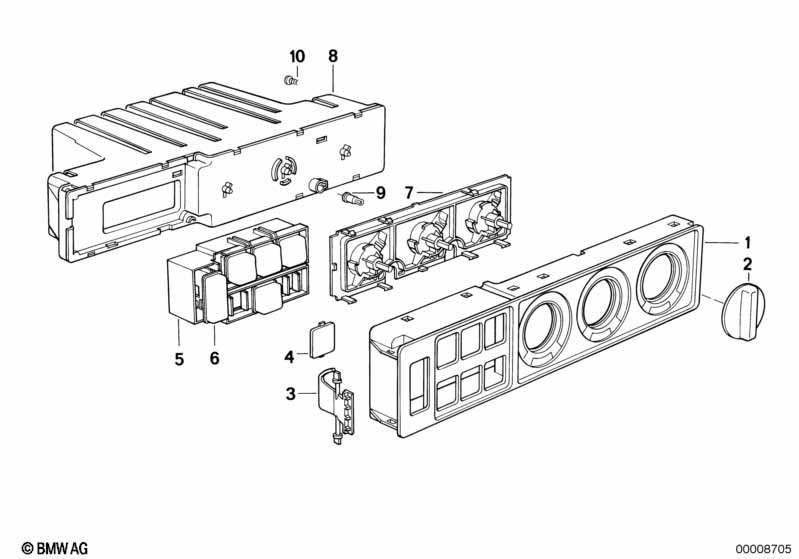

This Heater control Siemens technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel | 1 | 64111388947 | ENDED | Shop at ECS Tuning | |||||
| 02 | Knob temperature | 3 | 64111388733 | Shop at ECS Tuning | ||||||
| 03 | Clamp | 1 | 64111388602 | $2.40 | Shop at ECS Tuning | |||||
| 04 | Plug | 2 | 64111388732 | ENDED | Shop at ECS Tuning | |||||
| 05 | Switch air distribution | 1 | 64111388223 | ENDED | Shop at ECS Tuning | |||||
| 06 | Switch heated rear window | 1 | 64111378867 | $31.92 | Shop at ECS Tuning | |||||
| 07 | Base plate | 1 | 64111388574 | $28.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Control unit | 1 | 64111390802 | $446.40 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 10 | Screw | 5 | 64111378860 | $0.28 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
