Heater radiator/mounting parts for BMW 3 Series E21 320i (1977)

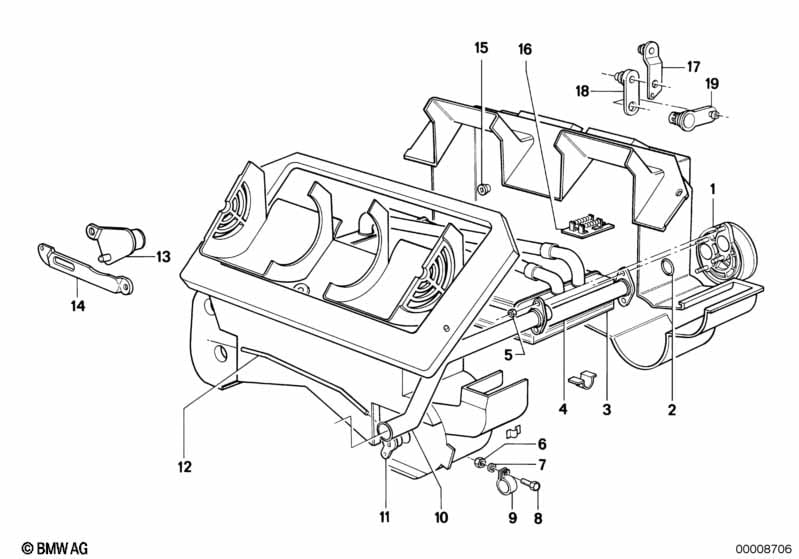

This Heater radiator/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water valve | 1 | 09/1979 | 64111360911 | $84.48 | Shop at ECS Tuning | ||||
| 02 | Gasket ring | D=17.12MM | 2 | 09/1979 | 64118377824 | $1.82 | Shop at ECS Tuning | |||
| 03 | Sealing strip | 1 | 64111358290 | $34.32 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sealing strip | 1 | 64111358291 | $2.14 | ENDED | Shop at ECS Tuning | ||||
| 04 | Heater radiator | 1 | 09/1979 | 64111359491 | $185.91 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M5 | 4 | 64111359114 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 07 | Spring washer | B5 | 1 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X20-8.8 ZNS | 1 | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 09 | Clamp | 2 | 64111357962 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pipe | 1 | 64111355683 | $157.36 | ENDED | Shop at ECS Tuning | ||||
| 11 | Lever | 1 | 64111359113 | $1.96 | ENDED | Shop at ECS Tuning | ||||
| 12 | Connection rod | 1 | 64111359111 | $10.49 | ENDED | Shop at ECS Tuning | ||||
| 13 | Lever | 1 | 64111358480 | $1.98 | ENDED | Shop at ECS Tuning | ||||
| 14 | Lever | 1 | 64111358481 | $67.24 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bush | 2 | 64111355765 | $0.61 | ENDED | Shop at ECS Tuning | ||||
| 16 | Resistor | BEHR | 1 | 64111366990 | $43.73 | ENDED | Shop at ECS Tuning | |||
| 16 | Resistor | 1 | 64111466012 | $47.10 | Shop at ECS Tuning | |||||
| 17 | Lever left | 1 | 09/1979 | 64111360931 | ENDED | Shop at ECS Tuning | ||||
| 17 | Lever right | 1 | 09/1979 | 64111360932 | ENDED | Shop at ECS Tuning | ||||
| 18 | Lever | 2 | 09/1979 | 64111360841 | $2.43 | ENDED | Shop at ECS Tuning | |||
| 19 | Lever | 2 | 64111360708 | $2.81 | ENDED | Shop at ECS Tuning |
