Heater control-rotary switches for BMW 5 Series E12 528i (1981)

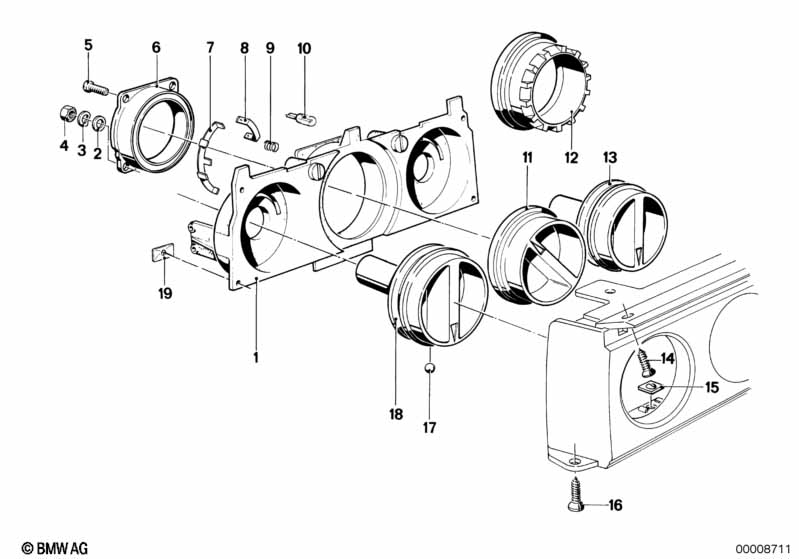

This Heater control-rotary switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Illumination plate | 1 | 02/1977 | 64111363218 | $56.36 | ENDED | Shop at ECS Tuning | |||
| 02 | Washer | 9X4,3X0,8-200HV | 1 | 02/1977 | 07119904205 | $0.07 | Shop at ECS Tuning | |||
| 03 | Spring washer | B4 | 1 | 02/1977 | 07119933034 | $0.11 | Shop at ECS Tuning | |||
| 04 | Hex nut | M4-A2-70 | 1 | 02/1977 | 07119922854 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M4X12 | 3 | 02/1977 | 07119900692 | $1.80 | Shop at ECS Tuning | |||
| 06 | Switch support | 1 | 02/1977 | 64111363219 | $36.38 | Shop at ECS Tuning | ||||
| 07 | Contact cicuit | 1 | 02/1977 | 64111363703 | Shop at ECS Tuning | |||||
| 08 | Contact | 4 | 02/1977 | 64111355525 | $1.75 | Shop at ECS Tuning | ||||
| 09 | Spring | 7 | 02/1977 | 64111355527 | $0.57 | Shop at ECS Tuning | ||||
| 10 | Bulb | 12V 1,2W | X | 02/1977 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 12 | Rotary switch blower | 1 | 64111363335 | $45.00 | Shop at ECS Tuning | |||||
| 12 | Rotary switch blower | 1 | 02/1977 | 64111363335 | $45.00 | Shop at ECS Tuning | ||||
| 13 | Button air distribution | 1 | 02/1977 | 64111355528 | $13.53 | Shop at ECS Tuning | ||||
| 14 | Recessed oval head sheet-metal screw | ST4,2X16 | 3 | 02/1977 | 07119902497 | $0.13 | Shop at ECS Tuning | |||
| 15 | Nut | ST4,2-1 | 2 | 02/1977 | 07129926107 | $0.36 | Shop at ECS Tuning | |||
| 16 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 02/1977 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | ||
| 17 | Ball | 4MM III | 3 | 02/1977 | 07119986240 | $0.25 | Shop at ECS Tuning | |||
| 18 | Temperature control button | 1 | 02/1977 | 64111361655 | $15.03 | ENDED | Shop at ECS Tuning | |||
| 19 | Body nut | 6 | 02/1977 | 64111355540 | $0.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
