Heater radiator/mounting parts for BMW 5 Series E12 518 (1981)

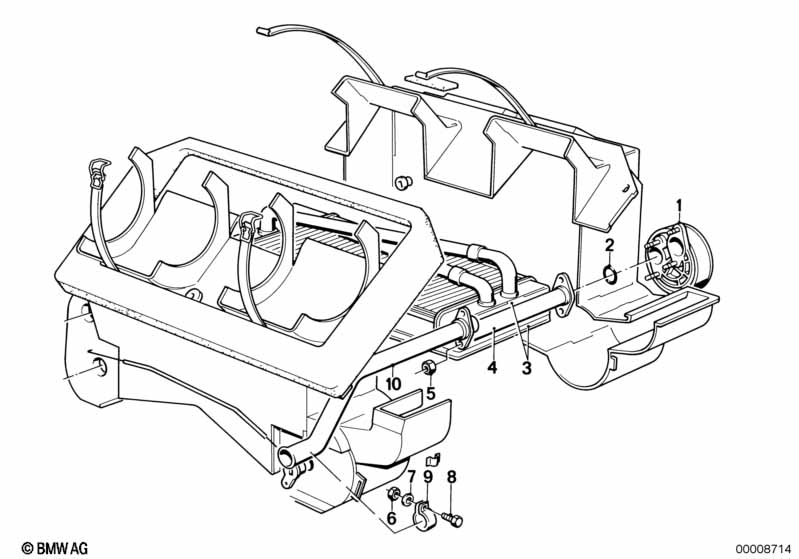

This Heater radiator/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water valve | 1 | 64111360820 | $143.31 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Water valve | 1 | 02/1977 | 64111359634 | $143.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket ring | D=17.12MM | 2 | 64118377824 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Sealing strip | 1 | 64111358290 | $34.32 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sealing strip | 1 | 64111358291 | $2.14 | ENDED | Shop at ECS Tuning | ||||
| 04 | Heater radiator | 1 | 64111359491 | $185.91 | Shop at ECS Tuning | |||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 04 | Heater radiator | 1 | 64111356003 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex nut | M5 | 4 | 64111359114 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 07 | Spring washer | B5 | 1 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X20-8.8 ZNS | 1 | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 09 | Clamp | 2 | 64111357962 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pipe | 1 | 64111355683 | $157.36 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
