Heater control-buttons/switch for BMW 6 Series E24 628CSi (1982)

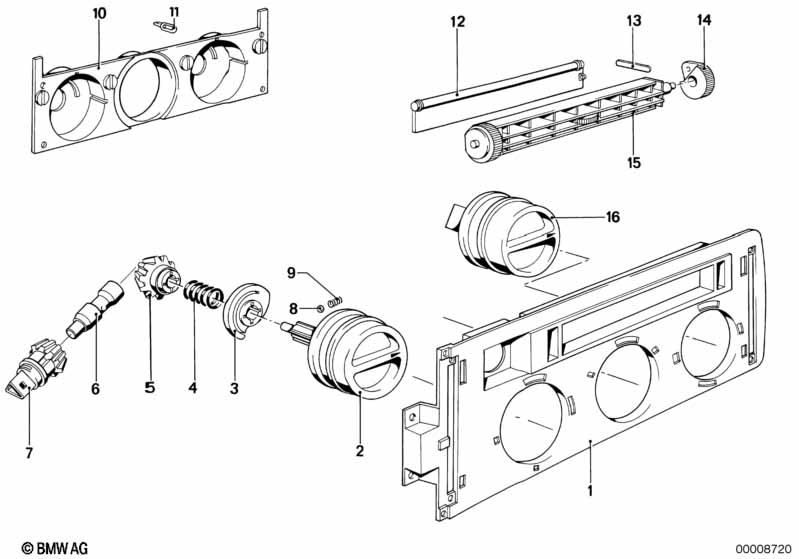

This Heater control-buttons/switch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel | 1 | 05/1982 | 64111359623 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Panel | 1 | 05/1982 | 64111360623 | ENDED | Shop at ECS Tuning | ||||
| 02 | Temperature control button | 1 | 05/1982 | 64111360310 | $11.27 | Shop at ECS Tuning | ||||
| 03 | Control cam | 1 | 05/1982 | 64111360308 | $13.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Compression spring | 1 | 05/1982 | 64111360642 | $1.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Bevel gear | 1 | 05/1982 | 64111359614 | ENDED | Shop at ECS Tuning | ||||
| 06 | Quick-release axle | 1 | 05/1982 | 64111360309 | $5.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Bevel gear | 1 | 05/1982 | 64111359615 | $5.78 | Shop at ECS Tuning | ||||
| 08 | Ball | 4MM III | 2 | 05/1982 | 07119986240 | $0.25 | Shop at ECS Tuning | |||
| 09 | Spring | 2 | 05/1982 | 64111355527 | $0.57 | Shop at ECS Tuning | ||||
| 10 | Plate | 1 | 05/1982 | 64111361275 | $54.42 | Shop at ECS Tuning | ||||
| 11 | Bulb | W3W | 4 | 05/1982 | 07119905358 | $1.96 | Shop at ECS Tuning | |||
| 12 | Flap | 1 | 05/1982 | 64111360562 | $10.49 | ENDED | Shop at ECS Tuning | |||
| 13 | Lever | 1 | 05/1982 | 64111360563 | $0.94 | ENDED | Shop at ECS Tuning | |||
| 14 | Voltage regulator | 1 | 05/1982 | 64111360564 | $3.09 | ENDED | Shop at ECS Tuning | |||
| 15 | Fresh air grille | 1 | 05/1982 | 64111360561 | $29.57 | ENDED | Shop at ECS Tuning | |||
| 16 | Button air distribution | 1 | 05/1982 | 64111355528 | $13.53 | Shop at ECS Tuning | ||||
