Heating/air conditioner actuation for BMW 6 Series E24 630CSi (1977)

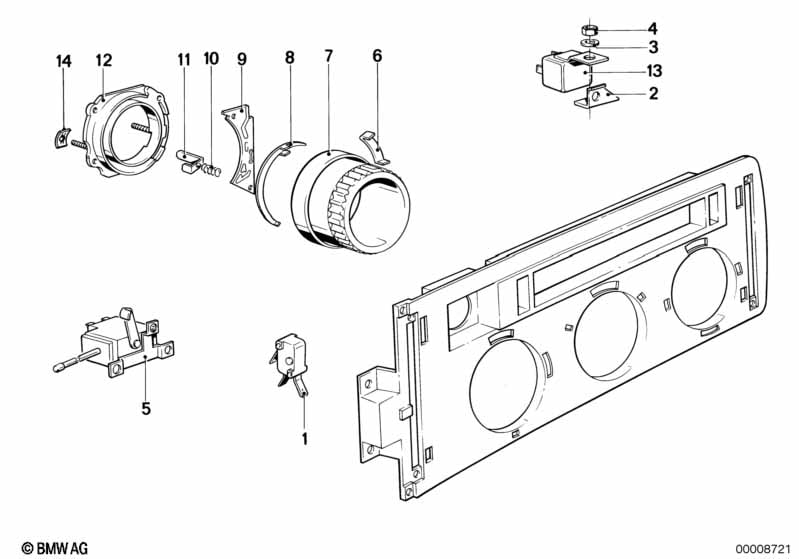

This Heating/air conditioner actuation technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Microswitch | 1 | 09/1982 | 64111360634 | $60.03 | Shop at ECS Tuning | ||||
| 02 | Holder | 1 | 09/1982 | 64111363771 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring washer | B4 | 1 | 09/1982 | 07119933034 | $0.11 | Shop at ECS Tuning | |||
| 04 | Hex nut | M4-A2-70 | 5 | 09/1982 | 07119922854 | Shop at ECS Tuning | ||||
| 05 | Thermostat | 1 | 09/1982 | 64111359613 | $121.92 | ENDED | Shop at ECS Tuning | |||
| 06 | Contact ring | 1 | 09/1982 | 64111361127 | $15.03 | Shop at ECS Tuning | ||||
| 07 | Rotary switch blower | 1 | 09/1982 | 64111364436 | $25.14 | Shop at ECS Tuning | ||||
| 08 | contact spring | 1 | 09/1982 | 64111361126 | $7.86 | Shop at ECS Tuning | ||||
| 09 | Resistor plate | 1 | 09/1982 | 64111361129 | $83.32 | ENDED | Shop at ECS Tuning | |||
| 10 | Spring | 3 | 09/1982 | 64111355527 | $0.57 | Shop at ECS Tuning | ||||
| 11 | Contact | 3 | 09/1982 | 64111361128 | $67.56 | ENDED | Shop at ECS Tuning | |||
| 12 | Supporting plate | 1 | 09/1982 | 64111359610 | $11.50 | Shop at ECS Tuning | ||||
| 13 | Mini-relay | 2 | 09/1982 | 61311243086 | $28.88 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Body nut | X | 09/1982 | 64111355540 | $0.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 630CSi Heating/air conditioner actuation?
- This technical diagram illustrates the Heating/air conditioner actuation within the Heater and Air Conditioning group for the 6 Series E24 630CSi produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Microswitch (Part #64111360634).
- Which models use the hardware listed in this Heating/air conditioner actuation?
- The hardware and components featured in the Heating/air conditioner actuation are specific to the 6 Series E24 630CSi produced during 1977. These technical specifications ensure that parts like the Microswitch (64111360634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heating/air conditioner actuation assembly?
- Each item in the Heating/air conditioner actuation corresponds to the numbered list below the illustration. For the 6 Series E24 630CSi, you can identify the Microswitch by locating its position on the schematic, which then links to the official BMW part number 64111360634 for the Heater and Air Conditioning section.
