Heater for BMW 7 Series E23 730 (1979)

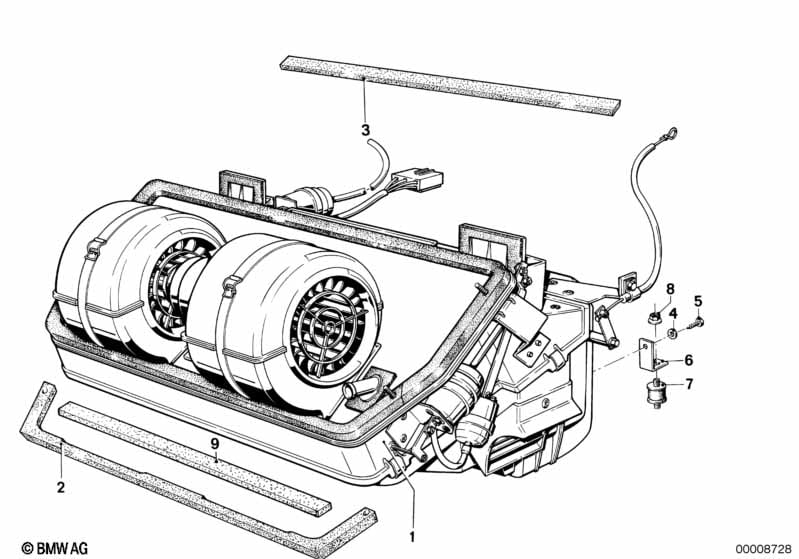

This Heater technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater | 1 | 08/1979 | 64111363135 | ENDED | Shop at ECS Tuning | ||||

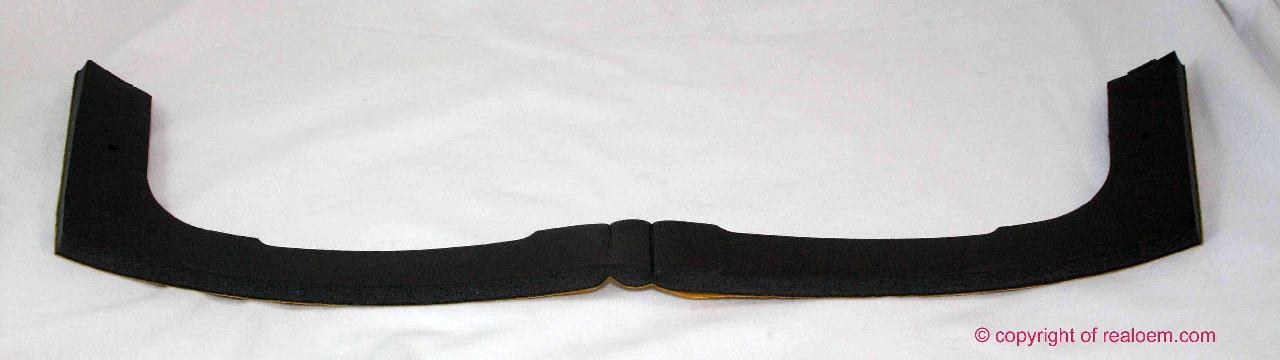

| 02 | Gasket | 1 | 64111365767 | $10.16 | ENDED | Shop at ECS Tuning | ||||

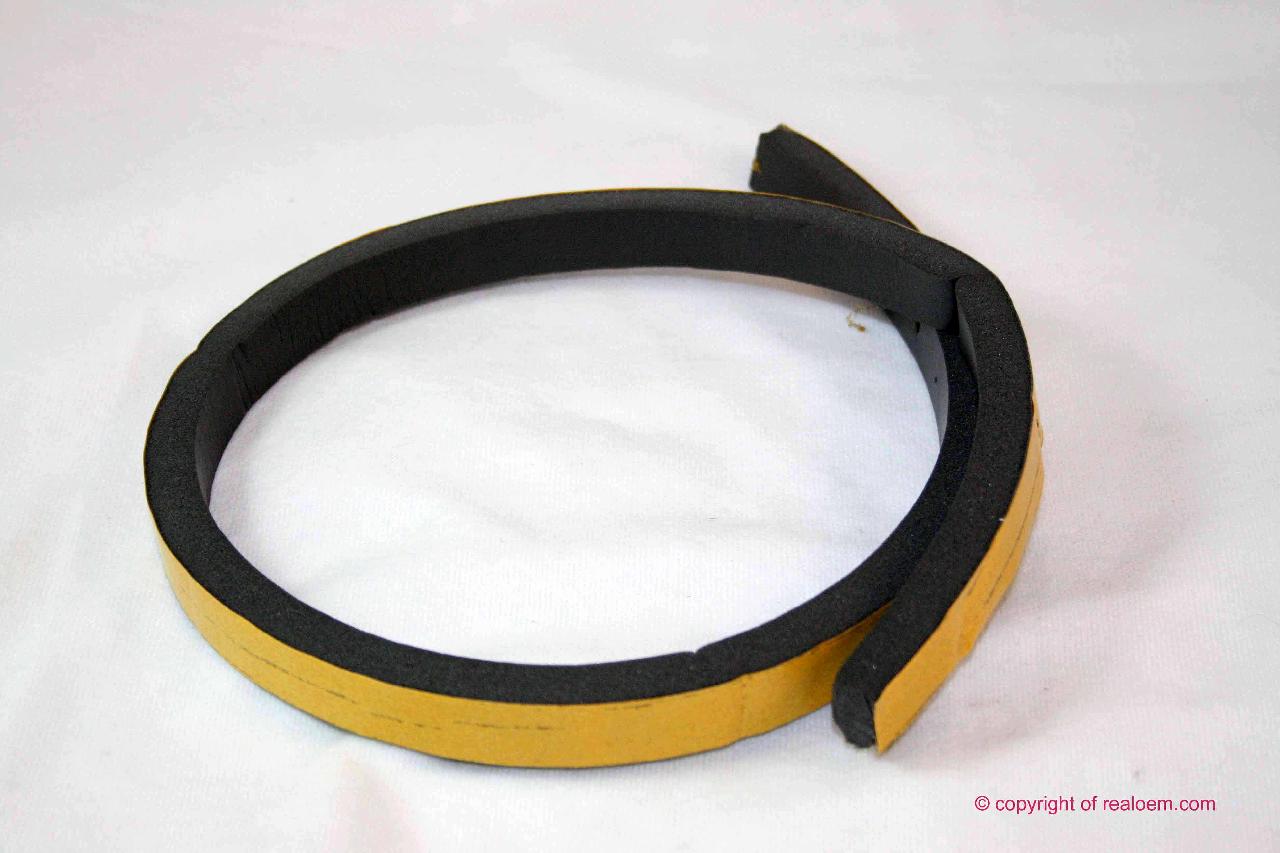

| 03 | Gasket | 761MM | 1 | 64111361860 | $7.79 | ENDED | Shop at ECS Tuning | |||
| 04 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST4,8X13-C | 2 | 07119916813 | $0.13 | Shop at ECS Tuning | ||||
| 06 | Holder | 2 | 64111361863 | ENDED | Shop at ECS Tuning | |||||
| 07 | Vibration damper | 2 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | M6 | 6 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Gasket | 761MM | 1 | 64111361860 | $7.79 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
