Actuator for BMW 7 Series E23 728 (1978)

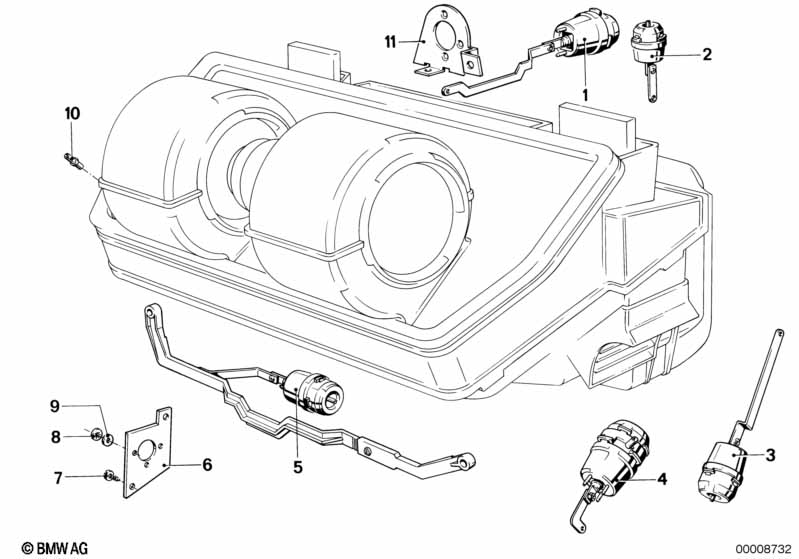

This Actuator technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator fresh air flap | 1 | 08/1979 | 64111363137 | $36.51 | ENDED | Shop at ECS Tuning | |||
| 02 | Actuator rear room flap | 1 | 08/1979 | 64111361836 | $62.83 | Shop at ECS Tuning | ||||
| 03 | Actuator defroster flaps | 1 | 08/1979 | 64111363136 | ENDED | Shop at ECS Tuning | ||||
| 04 | Actuator air throttle flap | 1 | 08/1979 | 64111363139 | $49.66 | ENDED | Shop at ECS Tuning | |||
| 05 | Actuator foot room flaps | 1 | 08/1979 | 64111365114 | $45.73 | ENDED | Shop at ECS Tuning | |||
| 06 | Mounting plate | 1 | 08/1979 | 64111361856 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | 3,5X9,5 | 2 | 08/1979 | 07119904455 | $2.45 | Shop at ECS Tuning | |||
| 08 | Spring nut | X | 08/1979 | 64111364257 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Rubber washer | X | 08/1979 | 64111363140 | $0.45 | Shop at ECS Tuning | ||||
| 10 | Connector black | 3 | 08/1979 | 64111363183 | $1.00 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
