Actuator for BMW 7 Series E23 728i (1983)

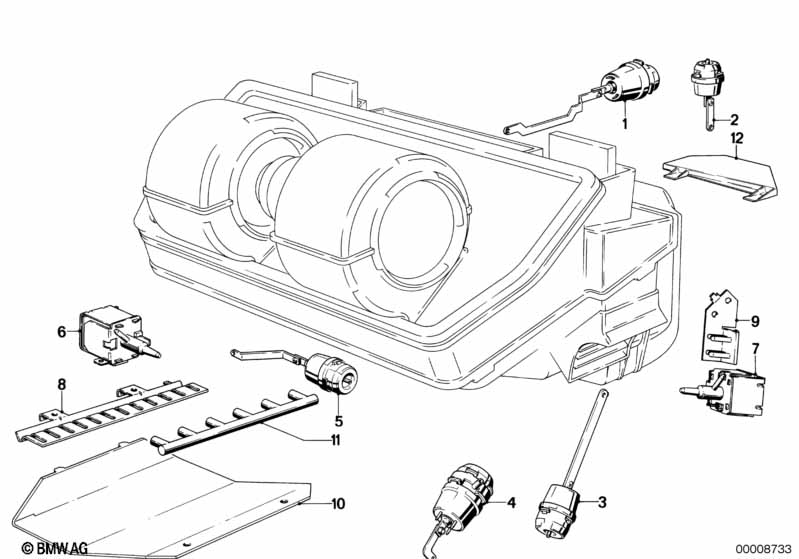

This Actuator technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator fresh air flap | 1 | 08/1979 | 64111367817 | $33.80 | Shop at ECS Tuning | ||||
| 02 | Actuator rear room flap | 1 | 08/1979 | 64111361836 | $62.83 | Shop at ECS Tuning | ||||
| 03 | Actuator defroster flaps | 1 | 08/1979 | 64111367816 | $33.80 | Shop at ECS Tuning | ||||
| 04 | Actuator air throttle flap | 1 | 08/1979 | 64111367820 | $50.11 | Shop at ECS Tuning | ||||
| 05 | Actuator foot room flaps | 1 | 08/1979 | 64111367818 | $62.83 | Shop at ECS Tuning | ||||
| 06 | Valve | 7 | 08/1979 | 64111376325 | $44.73 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 08/1979 | 64111367831 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 08/1979 | 64111367896 | $3.35 | ENDED | Shop at ECS Tuning | |||
| 10 | Holder | 1 | 08/1979 | 62121367867 | $2.95 | Shop at ECS Tuning | ||||
| 11 | Connector | 1 | 08/1979 | 64111367835 | $5.89 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Actuator?
- This technical diagram illustrates the Actuator within the Heater and Air Conditioning group for the 7 Series E23 728i produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Actuator fresh air flap (Part #64111367817).
- Which models use the hardware listed in this Actuator?
- The hardware and components featured in the Actuator are specific to the 7 Series E23 728i produced during 1983. These technical specifications ensure that parts like the Actuator fresh air flap (64111367817) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Actuator assembly?
- Each item in the Actuator corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Actuator fresh air flap by locating its position on the schematic, which then links to the official BMW part number 64111367817 for the Heater and Air Conditioning section.
