Vacuum hose for BMW 7 Series E23 732i (1982)

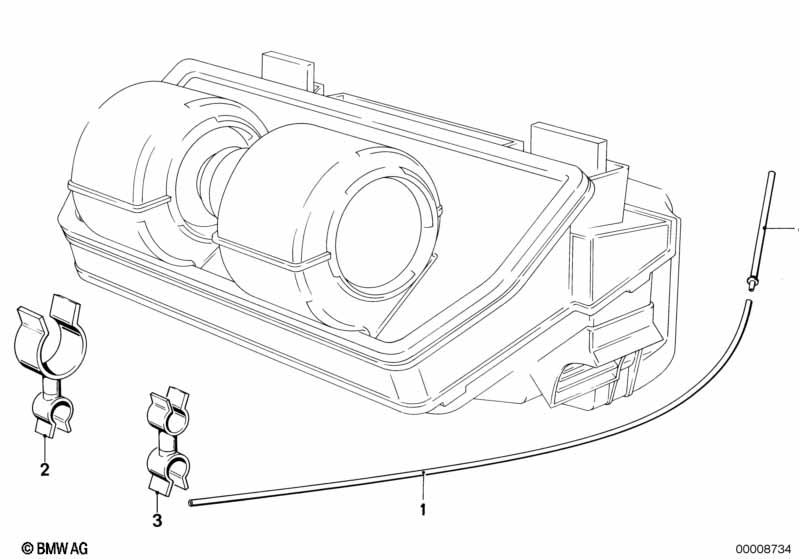

This Vacuum hose technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 01 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 01 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 01 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| HEATER AND AIR CONDITIONING SYSTEM | ||||||||||
| 01 | Vacuum hose blue | D=2,6MM BLAU | X | 07129974701 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose light blue | D=2,6MM HBLAU | X | 07129974702 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose brown | D=2,6MM BRAUN | X | 07129974704 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose light brown | D=2,6MM HBRAUN | X | 07129974705 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose yellow | D=2,6MM GELB | X | 07129974710 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose grey | D=2,6MM GRAU | X | 07129974716 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose green | D=2,6MM GRÜN | X | 07129974720 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose light green | D=2,6MM HGRÜN | X | 07129974721 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose orange | D=2,6MM ORANGE | X | 07129974725 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose pink | D=2,6MM ROSA | X | 07129974728 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose red | D=2,6MM ROT | X | 07129974730 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose black | D=2,6MM SCHWARZ | X | 07129974734 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose violet | D=2,6MM VIOLETT | X | 07129974738 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose white | D=2,6MM WEISS | X | 07129974740 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vacuum hose black-green | D=2,6MM | X | 64111365653 | $13.90 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable clip | X | 64111373927 | $1.34 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable clip | X | 64111366060 | $1.31 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fuel flow reducer | 2 | 64111370157 | $17.30 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
