Heater-switch panel/wiring set for BMW 7 Series E23 735i (1986)

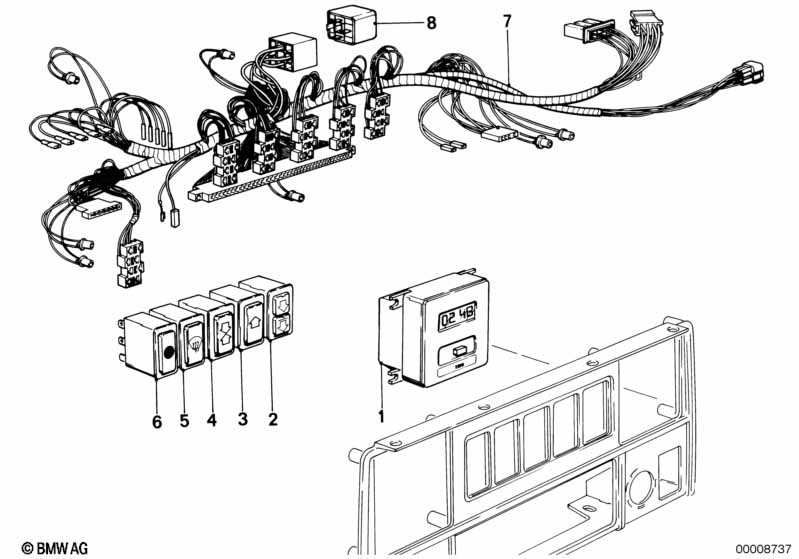

This Heater-switch panel/wiring set technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Switch air distribution lower | 1 | 08/1979 | 61311366497 | $44.03 | Shop at ECS Tuning | ||||
| 03 | Switch air distribution upper | 1 | 08/1979 | 61311366488 | $81.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Switch air distribution center | 1 | 08/1979 | 61311366491 | $39.83 | Shop at ECS Tuning | ||||
| 05 | Switch defrost | 1 | 08/1979 | 61311366902 | $37.08 | ENDED | Shop at ECS Tuning | |||
| 06 | Switch air distribution closed | 1 | 08/1979 | 61311366494 | $27.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Wiring heater control | 1 | 09/1981 | 61111371151 | ENDED | Shop at ECS Tuning | ||||
| 08 | Relay, change-over contact,signal violet | 1 | 08/1979 | 61361388911 | $13.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Heater-switch panel/wiring set?
- This technical diagram illustrates the Heater-switch panel/wiring set within the Heater and Air Conditioning group for the 7 Series E23 735i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Switch air distribution lower (Part #61311366497).
- Which models use the hardware listed in this Heater-switch panel/wiring set?
- The hardware and components featured in the Heater-switch panel/wiring set are specific to the 7 Series E23 735i produced during 1986. These technical specifications ensure that parts like the Switch air distribution lower (61311366497) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater-switch panel/wiring set assembly?
- Each item in the Heater-switch panel/wiring set corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Switch air distribution lower by locating its position on the schematic, which then links to the official BMW part number 61311366497 for the Heater and Air Conditioning section.
