Coolant lines for BMW 7 Series E32 750iLS (1994)

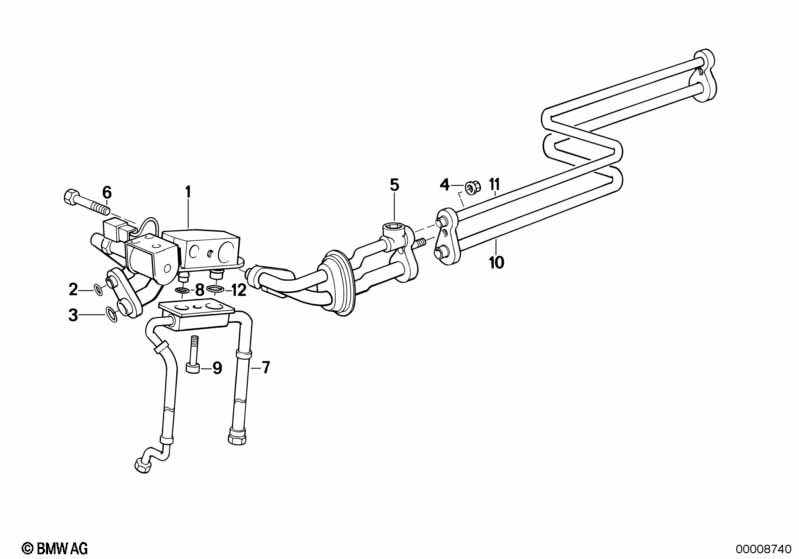

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ADD.AIR CONDITIO.UNIT | |||||||||
| 01 | Connection flange | 1 | 64531390311 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket ring | D=7,65MM | 5 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=17,17MM | 3 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=6.8 R12/R134A | 3 | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 05 | Tubing | 1 | 64531390319 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X40-Z3 | 1 | 07119915088 | $0.41 | Shop at ECS Tuning | ||||
| 07 | Connection flange | 1 | 64531390315 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket ring | D=14MM | 2 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M8X38 | 1 | 64531390108 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pipe | 1 | 64211388838 | ENDED | Shop at ECS Tuning | |||||
| 11 | Pipe | 1 | 64211388839 | ENDED | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 3 | 64111390583 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iLS Coolant lines?
- This technical diagram illustrates the Coolant lines within the Heater and Air Conditioning group for the 7 Series E32 750iLS produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Connection flange (Part #64531390311).
- Which models use the hardware listed in this Coolant lines?
- The hardware and components featured in the Coolant lines are specific to the 7 Series E32 750iLS produced during 1994. These technical specifications ensure that parts like the Connection flange (64531390311) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines assembly?
- Each item in the Coolant lines corresponds to the numbered list below the illustration. For the 7 Series E32 750iLS, you can identify the Connection flange by locating its position on the schematic, which then links to the official BMW part number 64531390311 for the Heater and Air Conditioning section.
