Single components heater for BMW 3 Series E21 318 (1977)

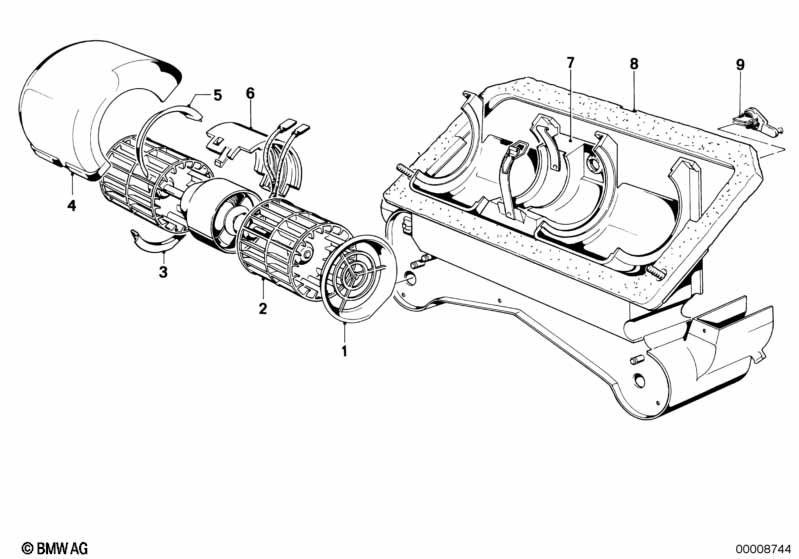

This Single components heater technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sofica | |||||||||
| 01 | Inlet frame outer | 2 | 11/1981 | 64111358875 | $7.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer | 2 | 11/1981 | 64111366009 | $7.57 | ENDED | Shop at ECS Tuning | |||
| 02 | Blower unit | 1 | 03/1979 | 64111367938 | $203.11 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Spacer | 2 | 03/1979 | 64111366009 | $7.57 | ENDED | Shop at ECS Tuning | |||
| 02 | Blower unit | 1 | 64111371958 | $203.11 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer | 2 | 64111366009 | $7.57 | ENDED | Shop at ECS Tuning | ||||
| -- | Wiring blower | 1 | 64111371978 | $7.47 | ENDED | Shop at ECS Tuning | ||||
| 03 | Inlet frame bottom | 2 | 11/1981 | 64111358873 | $3.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Blower upper part | 2 | 64111358872 | $16.02 | ENDED | Shop at ECS Tuning | ||||
| 05 | Inlet frame top | 2 | 11/1981 | 64111358874 | $3.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Spacer | 2 | 64111366009 | $7.57 | ENDED | Shop at ECS Tuning | ||||
| 07 | Housing half front | 1 | 03/1979 | 64111367714 | $237.71 | ENDED | Shop at ECS Tuning | |||
| 08 | Sealing frame | 1 | 64111355684 | $52.42 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
