Heater control for BMW 7 Series E23 728 (1978)

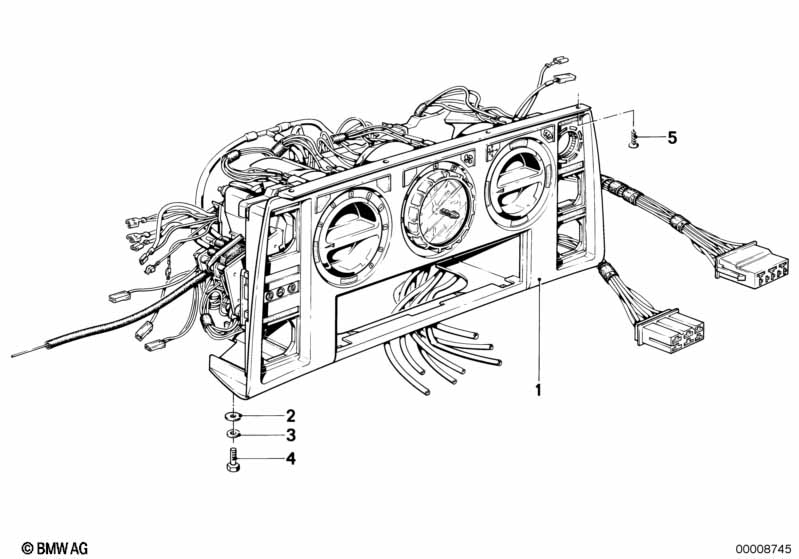

This Heater control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater control | 1 | 08/1979 | 64111364996 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-200HV-ZNS3 | 2 | 08/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 03 | Spring washer Black | B6-ZN | 2 | 08/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 03 | Washer | 5.3-140 HV-ZNS | 2 | 08/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 03 | Wave washer | B6-ZNS3 | 2 | 08/1979 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 08/1979 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 05 | Recessed oval head sheet-metal screw | ST3,5X9,5 | 4 | 08/1979 | 07119902524 | $0.82 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
