Air conditioning unit parts for BMW 3 Series E21 320i (1979)

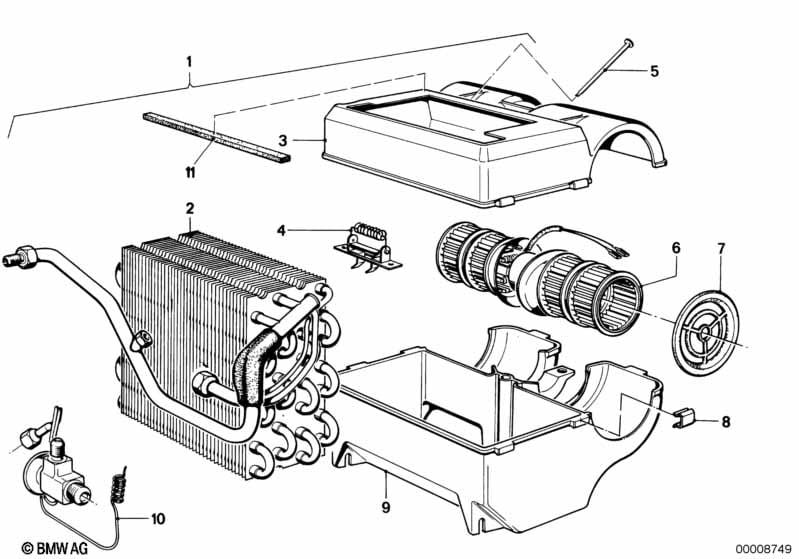

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | 1 | 09/1979 | 64511356013 | ENDED | Shop at ECS Tuning | ||||
| 01 | Evaporator | 1 | 09/1979 | 64511466237 | Shop at ECS Tuning | |||||
| 02 | Evaporator | 1 | 09/1979 | 64511356014 | $348.19 | ENDED | Shop at ECS Tuning | |||
| 02 | Evaporator | 1 | 09/1979 | 64511466238 | Shop at ECS Tuning | |||||
| 03 | Housing upper part | 1 | 64511352021 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| 03 | Upper part housing | 1 | 64511466248 | $51.34 | Shop at ECS Tuning | |||||
| 04 | Resistor | 1 | 09/1979 | 64511352023 | $13.84 | ENDED | Shop at ECS Tuning | |||
| 04 | Resistor | 1 | 09/1979 | 64511466249 | $12.85 | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 64511356909 | $3.25 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 64511466026 | $4.45 | Shop at ECS Tuning | |||||
| 06 | Blower unit | 1 | 64511356015 | $451.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Blower | 1 | 64511466021 | $243.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Frame | 2 | 64511352019 | $7.71 | ENDED | Shop at ECS Tuning | ||||
| 07 | Frame | 2 | 64511466247 | $1.20 | Shop at ECS Tuning | |||||
| 08 | Clamp | 7 | 09/1979 | 64114674162 | $2.58 | ENDED | Shop at ECS Tuning | |||
| 09 | Housing lower part | 1 | 09/1979 | 64511352020 | $61.94 | ENDED | Shop at ECS Tuning | |||
| 10 | Expansion valve | 1 | 64511354379 | $90.10 | ENDED | Shop at ECS Tuning | ||||
| 10 | Expansion valve | 1 | 64511466020 | $61.35 | Shop at ECS Tuning | |||||
| 11 | Sealing strip | 1 | 64501363285 | $0.67 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
