RP A/C compressor for BMW 3 Series E21 318i (1982)

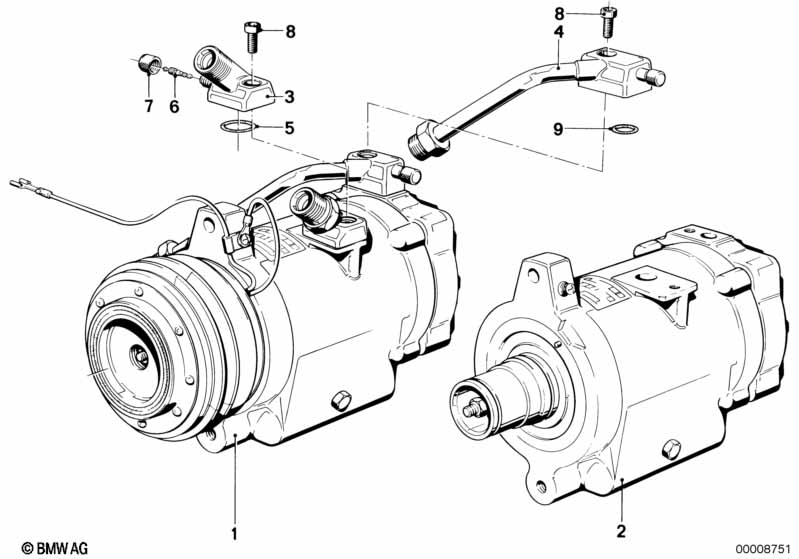

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP A/C compressor | 1 | 09/1979 | 64521365905 | $884.49 | ENDED | Shop at ECS Tuning | |||
| 02 | RP A/C compressor | 1 | 64521365073 | $884.49 | ENDED | Shop at ECS Tuning | ||||
| 03 | Connector suction pipe | 1 | 09/1979 | 64521367376 | ENDED | Shop at ECS Tuning | ||||
| 04 | Connector pressure pipe | 1 | 09/1979 | 64521367375 | $108.34 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 1 | 64521356356 | $2.27 | Shop at ECS Tuning | |||||
| 06 | Valve | 1 | 64521354981 | $5.19 | Shop at ECS Tuning | |||||
| 07 | Cap | 1 | 64531363569 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister head with washer | M8X25-Z3 | 2 | 07119920022 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | 1 | 64521356355 | $3.38 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318i RP A/C compressor?
- This technical diagram illustrates the RP A/C compressor within the Heater and Air Conditioning group for the 3 Series E21 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the RP A/C compressor (Part #64521365905).
- Which models use the hardware listed in this RP A/C compressor?
- The hardware and components featured in the RP A/C compressor are specific to the 3 Series E21 318i produced during 1982. These technical specifications ensure that parts like the RP A/C compressor (64521365905) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the RP A/C compressor assembly?
- Each item in the RP A/C compressor corresponds to the numbered list below the illustration. For the 3 Series E21 318i, you can identify the RP A/C compressor by locating its position on the schematic, which then links to the official BMW part number 64521365905 for the Heater and Air Conditioning section.
