Climate compressor mounting parts for BMW 3 Series E21 320i (1977)

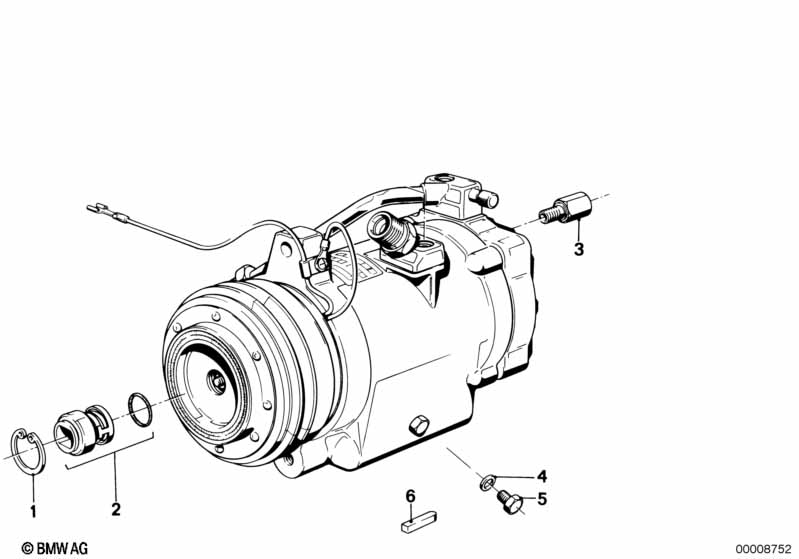

This Climate compressor mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | 35X1,5 | 1 | 07119934671 | $0.82 | Shop at ECS Tuning | ||||
| 02 | sealing | 1 | 64521356345 | $75.10 | ENDED | Shop at ECS Tuning | ||||
| 03 | Valve | 1 | 64521354982 | $70.68 | Shop at ECS Tuning | |||||
| 04 | Washer-gasket | 1 | 64521356349 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Parallel key | 1 | 64521366128 | $3.55 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Climate compressor mounting parts?
- This technical diagram illustrates the Climate compressor mounting parts within the Heater and Air Conditioning group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Lock Ring (Part #07119934671).
- Which models use the hardware listed in this Climate compressor mounting parts?
- The hardware and components featured in the Climate compressor mounting parts are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Lock Ring (07119934671) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Climate compressor mounting parts assembly?
- Each item in the Climate compressor mounting parts corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Lock Ring by locating its position on the schematic, which then links to the official BMW part number 07119934671 for the Heater and Air Conditioning section.
