Magnetic clutch for BMW 6 Series E24 635CSi (1987)

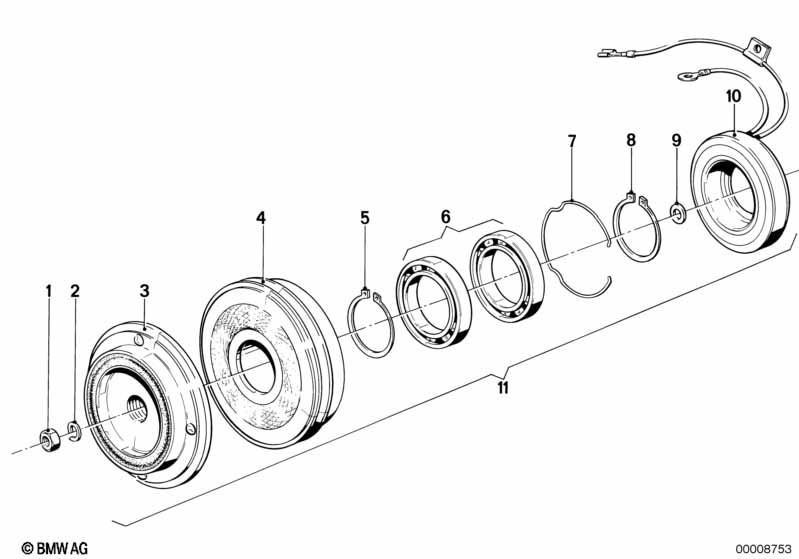

This Magnetic clutch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APP.TO OSCILLATING PLATE COMPRESSOR | ||||||||||
| 01 | Hex nut | M8-8-ZNS3 | 1 | 04/1989 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 01 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Clutch plate | 1 | 64521366127 | $70.90 | Shop at ECS Tuning | |||||
| 04 | Pulley | 1 | 64521366136 | ENDED | Shop at ECS Tuning | |||||
| 05 | Lock Ring | 1 | 64521366130 | ENDED | Shop at ECS Tuning | |||||
| 06 | Ball bearing | 2 | 64521354975 | $25.65 | Shop at ECS Tuning | |||||
| 07 | Wire-strap | 1 | 64521366126 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lock Ring | 1 | 64521366129 | $7.05 | Shop at ECS Tuning | |||||
| 09 | Shim | 1 | 64521354980 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 10 | Solenoid | 1 | 64521366139 | ENDED | Shop at ECS Tuning | |||||
| 11 | Magnetic clutch | 1 | 64521366138 | $346.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
