Fan belt for BMW 3 Series E21 320 (1979)

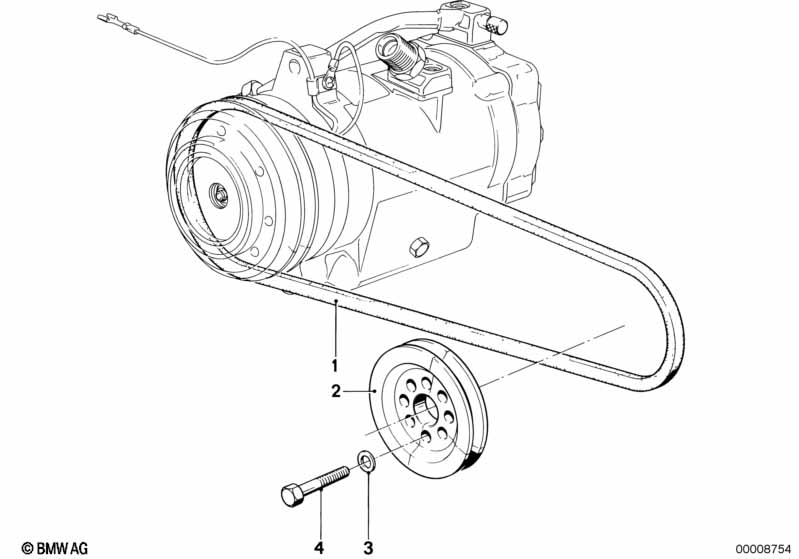

This Fan belt technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan belt | 1 | 64551722991 | Shop at ECS Tuning | ||||||
| 02 | Pulley | 1 | 11211286336 | $143.70 | Shop at ECS Tuning | |||||
| 03 | Washer | A8,4 | 8 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Fan belt?
- This technical diagram illustrates the Fan belt within the Heater and Air Conditioning group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Fan belt (Part #64551722991).
- Which models use the hardware listed in this Fan belt?
- The hardware and components featured in the Fan belt are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Fan belt (64551722991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fan belt assembly?
- Each item in the Fan belt corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Fan belt by locating its position on the schematic, which then links to the official BMW part number 64551722991 for the Heater and Air Conditioning section.
