Climate compressor mounting parts for BMW 3 Series E21 320i (1978)

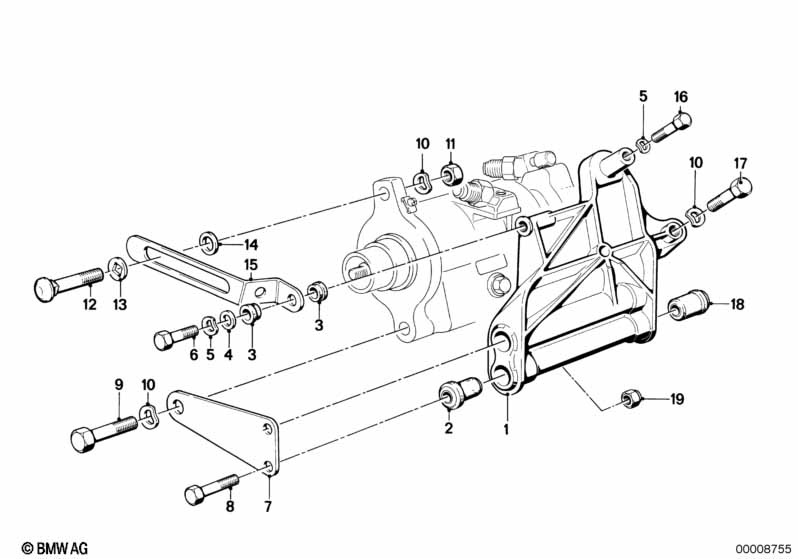

This Climate compressor mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Climate compressor supporting bracket | 1 | 64521260209 | $112.21 | Shop at ECS Tuning | |||||
| 02 | Bush | 2 | 32411705063 | $14.36 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bush | 2 | 11721261404 | $7.58 | Shop at ECS Tuning | |||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X30 | 2 | 07119913682 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket rear | 1 | 64521259516 | $4.65 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket front | 1 | 64521260208 | $3.41 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X40-ZNNIV SI | 4 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X25 8.8 | 2 | 07119908569 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M10X25-8.8 ZN | 2 | 07119913834 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Saucer-head screw | M10X45 | 1 | 07119910494 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M10X45 | 1 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 13 | Shim | 1 | 64521270680 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 14 | Spacer bush | 1 | 64521270679 | $25.95 | ENDED | Shop at ECS Tuning | ||||
| 14 | Washer | 10,5X25X3,5MM | 1 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 15 | Adjusting bar | 1 | 64521257710 | $5.98 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M10X30-10.9ZNS3 | 1 | 07119902912 | Shop at ECS Tuning | |||||
| 18 | Bush | 2 | 64521258970 | $15.55 | Shop at ECS Tuning | |||||
| 19 | Self-locking hex nut | M8-8-ZNNI SI | 4 | 07129906196 | $1.60 | Shop at ECS Tuning |
