Climate compressor mounting parts for BMW 3 Series E21 323i (1982)

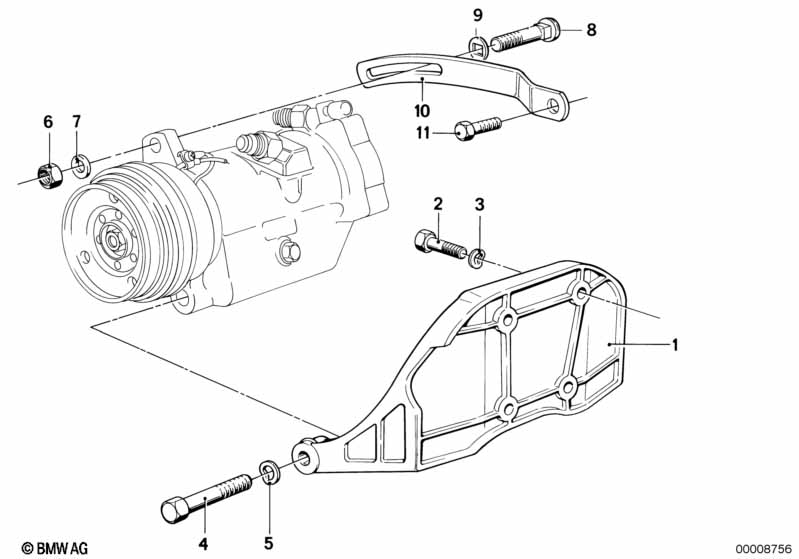

This Climate compressor mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 64521263922 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X25 | 4 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 5 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X45 | 2 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 05 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Washer | 10-200 HV-ZNNIV | 1 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Saucer-head screw | M10X40 | 1 | 07119910493 | ENDED | Shop at ECS Tuning | ||||
| 08 | Saucer-head screw | M10X45 | 1 | 07119910494 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shim | 1 | 64521270680 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 10 | Adjusting bar | 1 | 64521263930 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
