Pressure hose assy for BMW 3 Series E21 320 (1979)

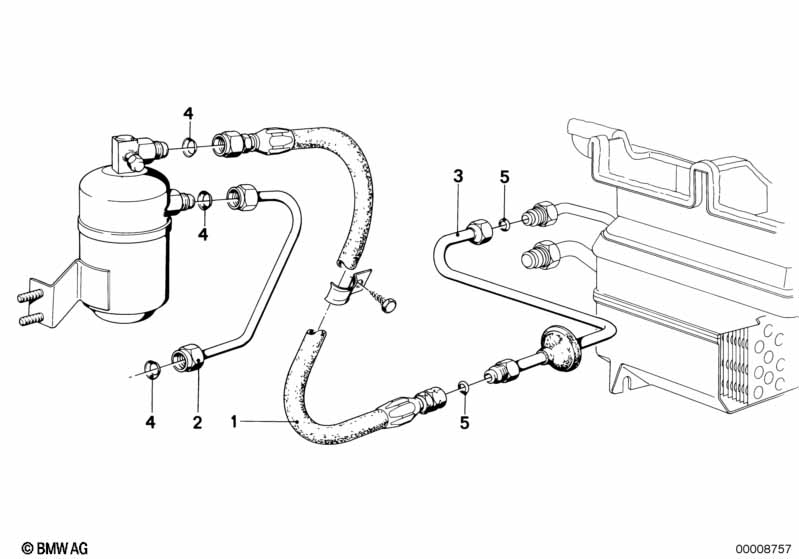

This Pressure hose assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose line | 1 | 08/1979 | 64531365009 | ENDED | Shop at ECS Tuning | ||||
| 01 | Hose line | 1 | 08/1979 | 64531365016 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pipe | 1 | 08/1979 | 64531360158 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket | 3/4" | 3 | 08/1979 | 64531350489 | $3.08 | Shop at ECS Tuning | |||
| 05 | Gasket | 5/8" | 2 | 08/1979 | 64531350490 | $3.08 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
