Suction pipe/pressure hose assy for BMW 3 Series E21 320 (1979)

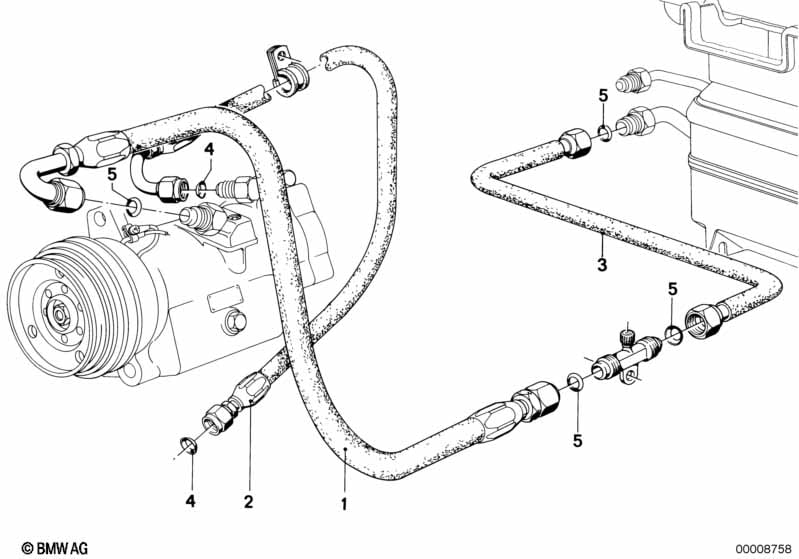

This Suction pipe/pressure hose assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose line | 1 | 08/1979 | 64531367369 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hose line | 1 | 08/1979 | 64531367355 | $36.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | D=11.1MM | 5 | 08/1979 | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | ||
| 04 | Gasket ring | 5 | 08/1979 | 64508374877 | $1.24 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | D=11.1MM | 5 | 08/1979 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 05 | Gasket ring | D=14MM | 3 | 08/1979 | 64508390603 | $1.49 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Suction pipe/pressure hose assy?
- This technical diagram illustrates the Suction pipe/pressure hose assy within the Heater and Air Conditioning group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Hose line (Part #64531367369).
- Which models use the hardware listed in this Suction pipe/pressure hose assy?
- The hardware and components featured in the Suction pipe/pressure hose assy are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Hose line (64531367369) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suction pipe/pressure hose assy assembly?
- Each item in the Suction pipe/pressure hose assy corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Hose line by locating its position on the schematic, which then links to the official BMW part number 64531367369 for the Heater and Air Conditioning section.
