Tubing-attaching parts for BMW 3 Series E21 315 (1983)

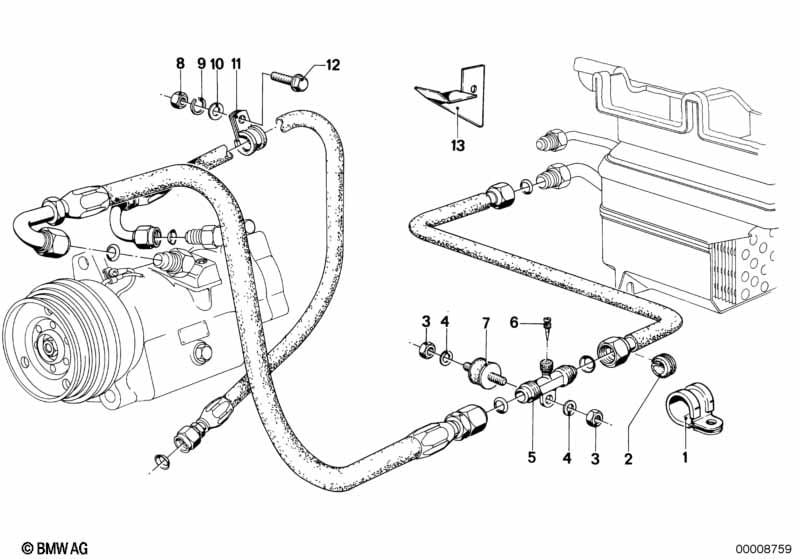

This Tubing-attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose clamp | D=28/8,4 | 2 | 64531363567 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber grommet | 1 | 64214774144 | $1.46 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Valve | 1 | 64531356549 | $29.44 | ENDED | Shop at ECS Tuning | ||||
| 06 | Valve | 1 | 64521354981 | $5.19 | Shop at ECS Tuning | |||||
| 07 | Connection piece | 1 | 64501356464 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Spring washer | B6 | 1 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Clamp | D=20/6,4 | 1 | 64531356622 | $1.72 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning |
