Climate capacitor/additional blower for BMW 3 Series E21 320i (1979)

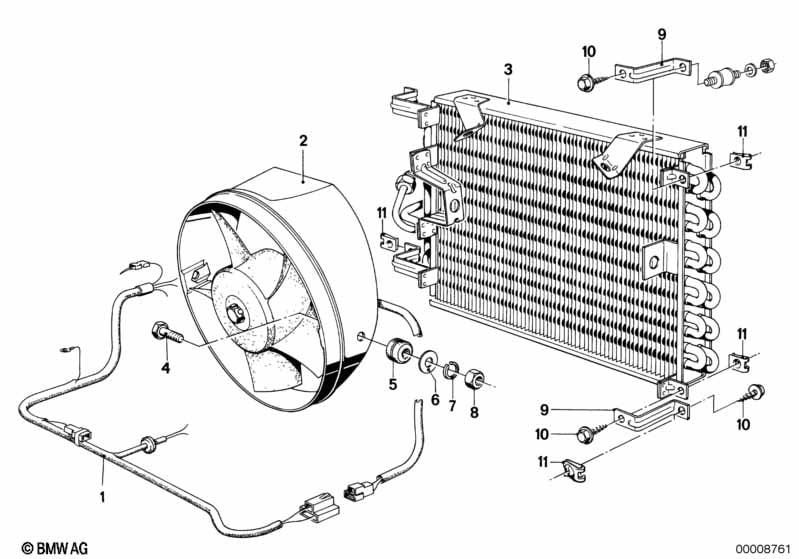

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set additional fan | 1 | 61121360081 | $27.34 | ENDED | Shop at ECS Tuning | ||||
| 02 | Blower unit | D=282MM | 1 | 17401361556 | $412.32 | Shop at ECS Tuning | ||||
| 02 | Blower | 1 | 17401466178 | $434.75 | Shop at ECS Tuning | |||||
| 03 | Condenser | 1 | 09/1979 | 64531361704 | $188.94 | ENDED | Shop at ECS Tuning | |||
| 03 | Condenser | 1 | 09/1979 | 64531466045 | $292.00 | Shop at ECS Tuning | ||||
| 04 | Fit bolt | M5 | 4 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 4 | 17401354524 | $0.70 | Shop at ECS Tuning | |||||
| 06 | Washer | 4 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 09 | Bracket | 2 | 09/1979 | 64531360168 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 4 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST6,3-10 | 4 | 07129901672 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST6,3-2-ZNS3 | 4 | 07129904232 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
