Air conditioning unit parts for BMW 5 Series E12 525 (1981)

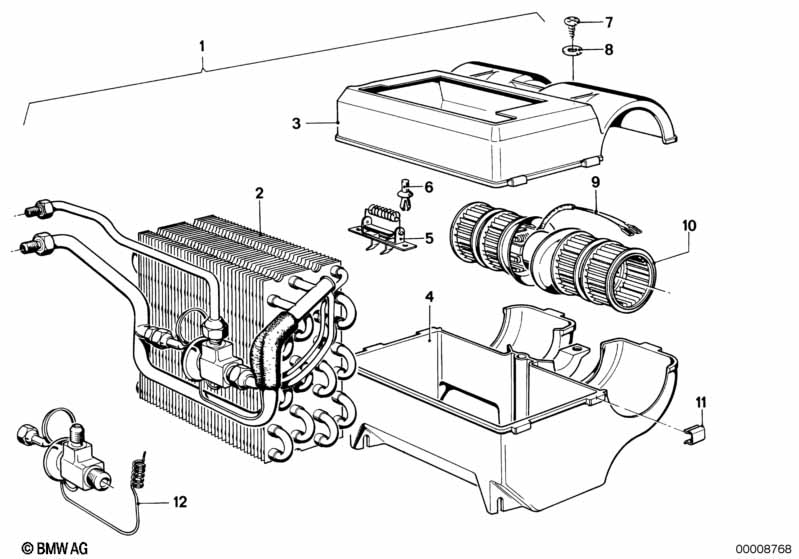

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | 1 | 02/1977 | 64511363796 | ENDED | Shop at ECS Tuning | ||||
| 02 | Evaporator | 1 | 02/1977 | 64511364258 | ENDED | Shop at ECS Tuning | ||||
| 03 | Housing upper part | 1 | 02/1977 | 64511362723 | $130.41 | Shop at ECS Tuning | ||||
| 04 | Housing lower part | 1 | 02/1977 | 64511376145 | $26.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Resistor | 1 | 02/1977 | 64511363797 | $73.17 | ENDED | Shop at ECS Tuning | |||
| 06 | Expanding rivet | 2 | 02/1977 | 51161881149 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X13 | 1 | 02/1977 | 07119907786 | $0.11 | Shop at ECS Tuning | |||
| 08 | Washer | 10X5,3X1-200 HV | 1 | 02/1977 | 07119904206 | Shop at ECS Tuning | ||||
| 08 | Washer | 5.3-140 HV-ZNS | 1 | 02/1977 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 09 | Wiring blower | 1 | 02/1977 | 61121364433 | $9.71 | ENDED | Shop at ECS Tuning | |||
| 10 | Blower unit | 1 | 02/1977 | 64511377752 | $164.05 | ENDED | Shop at ECS Tuning | |||
| 11 | Clamp | 7 | 02/1977 | 64114674162 | $2.58 | ENDED | Shop at ECS Tuning | |||
| 12 | Expansion valve | 1 | 02/1977 | 64511354379 | $90.10 | ENDED | Shop at ECS Tuning |
