Air conditioning system mounting parts for BMW 5 Series E12 520 (1981)

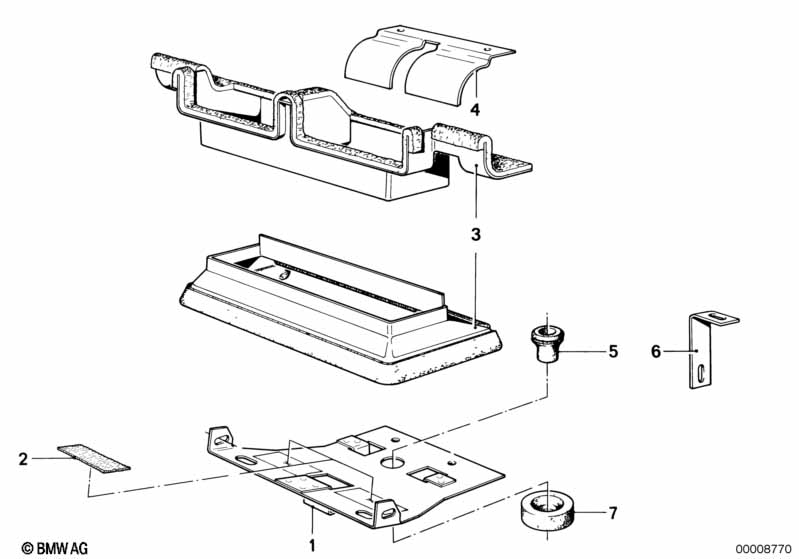

This Air conditioning system mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base plate | 1 | 02/1977 | 64511356033 | $30.39 | ENDED | Shop at ECS Tuning | |||
| 02 | Felt strip | 2 | 02/1977 | 64511372091 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering piece | 1 | 02/1977 | 64501363554 | $20.76 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide plate | 1 | 02/1977 | 64501356031 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 05 | Grommet | 1 | 02/1977 | 64511356039 | $1.46 | ENDED | Shop at ECS Tuning | |||
| 06 | Support | 1 | 02/1977 | 64511362134 | $2.81 | Shop at ECS Tuning | ||||
| 07 | Rubber seal | 1 | 02/1977 | 64511352205 | $3.43 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Air conditioning system mounting parts?
- This technical diagram illustrates the Air conditioning system mounting parts within the Heater and Air Conditioning group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Base plate (Part #64511356033).
- Which models use the hardware listed in this Air conditioning system mounting parts?
- The hardware and components featured in the Air conditioning system mounting parts are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Base plate (64511356033) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning system mounting parts assembly?
- Each item in the Air conditioning system mounting parts corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Base plate by locating its position on the schematic, which then links to the official BMW part number 64511356033 for the Heater and Air Conditioning section.
