RP A/C compressor for BMW 5 Series E12 520i (1976)

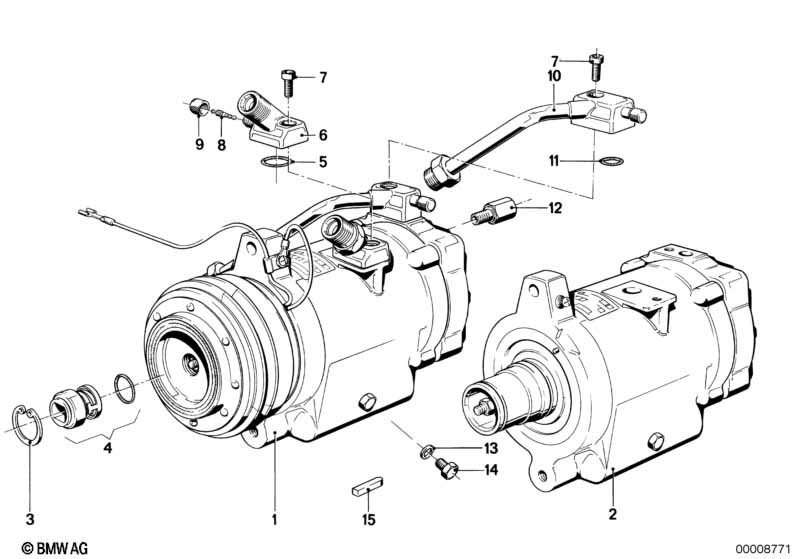

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP A/C compressor | 1 | 08/1979 | 64521365905 | $884.49 | ENDED | Shop at ECS Tuning | |||
| 02 | RP A/C compressor | 1 | 03/1978 | 64521366141 | $655.00 | Shop at ECS Tuning | ||||
| 02 | RP A/C compressor | 1 | 64521365073 | $884.49 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 35X1,5 | 1 | 07119934671 | $0.82 | Shop at ECS Tuning | ||||
| 04 | sealing | 1 | 64521356345 | $75.10 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 1 | 64521356356 | $2.27 | Shop at ECS Tuning | |||||
| 06 | Connector suction pipe | 1 | 64521366131 | $287.93 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fillister head with washer | M8X25-Z3 | 1 | 07119920022 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Valve | 1 | 64521354981 | $5.19 | Shop at ECS Tuning | |||||
| 09 | Cap | 1 | 64531363569 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| 10 | Connector pressure pipe | 1 | 64521366134 | ENDED | Shop at ECS Tuning | |||||
| 11 | Gasket ring | 1 | 64521356355 | $3.38 | ENDED | Shop at ECS Tuning | ||||
| 12 | Valve | 1 | 64521354982 | $70.68 | Shop at ECS Tuning | |||||
| 13 | Washer-gasket | 1 | 64521356349 | ENDED | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Parallel key | 1 | 64521366128 | $3.55 | ENDED | Shop at ECS Tuning |
