Coolant pipe for BMW 5 Series E12 525 (1981)

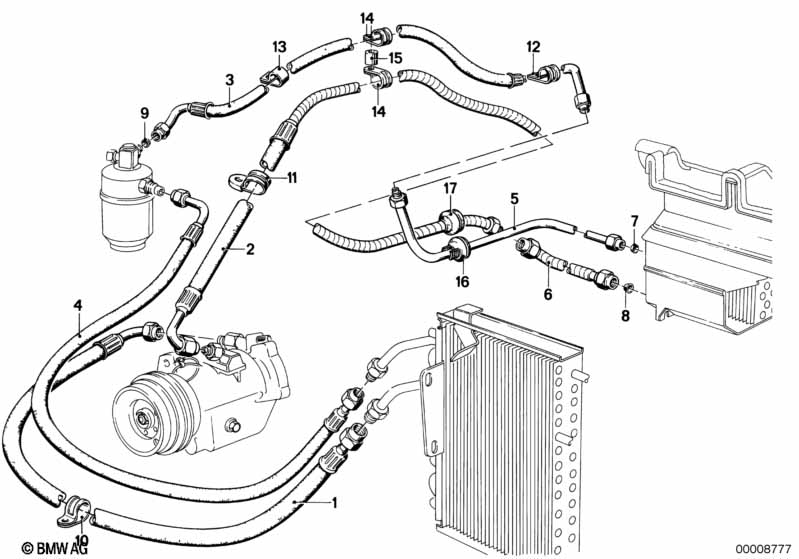

This Coolant pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose line | 1 | 11/1978 | 64531366420 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hose line | 1 | 11/1978 | 64531366416 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hose line | 1 | 11/1978 | 64531366422 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose line | 1 | 11/1978 | 64531366418 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 11/1978 | 64531366421 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pipe | 1 | 11/1978 | 64531366417 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket | 5/8" | X | 11/1978 | 64531350490 | $3.08 | ENDED | Shop at ECS Tuning | ||
| 08 | Conical ring | D=20MM | X | 11/1978 | 64531350491 | $1.23 | Shop at ECS Tuning | |||
| 09 | Gasket | 3/4" | X | 11/1978 | 64531350489 | $3.08 | Shop at ECS Tuning | |||
| 11 | Hose clamp | D=28/8,4 | 1 | 11/1978 | 64531363567 | ENDED | Shop at ECS Tuning | |||
| 12 | Clamp | D=20/6,4 | 1 | 11/1978 | 64531356622 | $1.72 | Shop at ECS Tuning | |||
| 13 | Hose clamp | 1 | 11/1978 | 64531363604 | $1.40 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | D=20/6,4 | 2 | 11/1978 | 64531356622 | $1.72 | Shop at ECS Tuning | |||
| 15 | Spacer bush | 1 | 11/1978 | 64531366544 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rubber grommet | 1 | 11/1978 | 63128071754 | $1.13 | Shop at ECS Tuning | ||||
| 17 | Rubber grommet | D=22MM/D=4MM | 1 | 11/1978 | 61131356312 | $3.10 | Shop at ECS Tuning |
