Air cond.syst.-relais/switch/wiring set for BMW 5 Series E12 528i (1981)

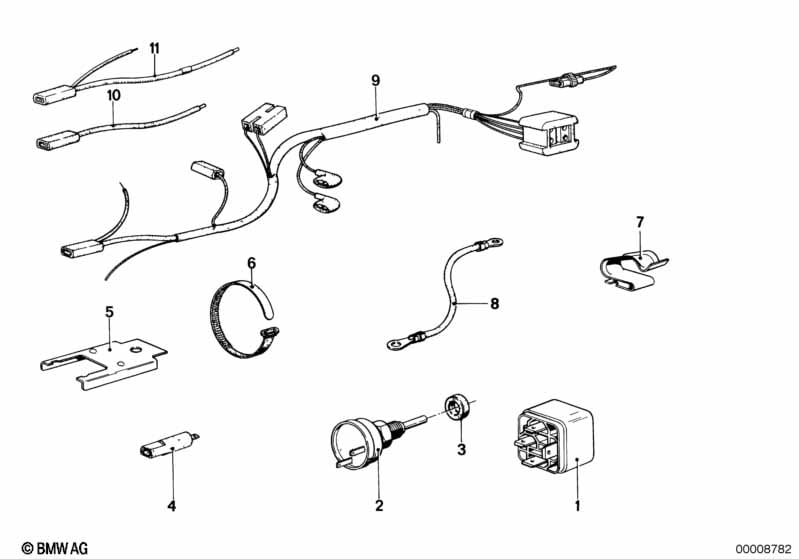

This Air cond.syst.-relais/switch/wiring set technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay | GELB | 1 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Mini-relay | 1 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 02 | Temperature switch | 91CEL | 1 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 02 | Temperature switch | 99CEL | 1 | 61311364273 | $29.04 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 06 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Fixing clamp | 1 | 07149139223 | $0.18 | Shop at ECS Tuning | |||||
| 07 | Cable clamp | 1 | 61131355741 | $0.41 | Shop at ECS Tuning | |||||
| 09 | Wiring for air conditioner | 1 | 08/1979 | 61121367639 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Air cond.syst.-relais/switch/wiring set?
- This technical diagram illustrates the Air cond.syst.-relais/switch/wiring set within the Heater and Air Conditioning group for the 5 Series E12 528i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Relay (Part #61311373585).
- Which models use the hardware listed in this Air cond.syst.-relais/switch/wiring set?
- The hardware and components featured in the Air cond.syst.-relais/switch/wiring set are specific to the 5 Series E12 528i produced during 1981. These technical specifications ensure that parts like the Relay (61311373585) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cond.syst.-relais/switch/wiring set assembly?
- Each item in the Air cond.syst.-relais/switch/wiring set corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Relay by locating its position on the schematic, which then links to the official BMW part number 61311373585 for the Heater and Air Conditioning section.
