Climate capacitor/additional blower for BMW 6 Series E24 635CSi (1989)

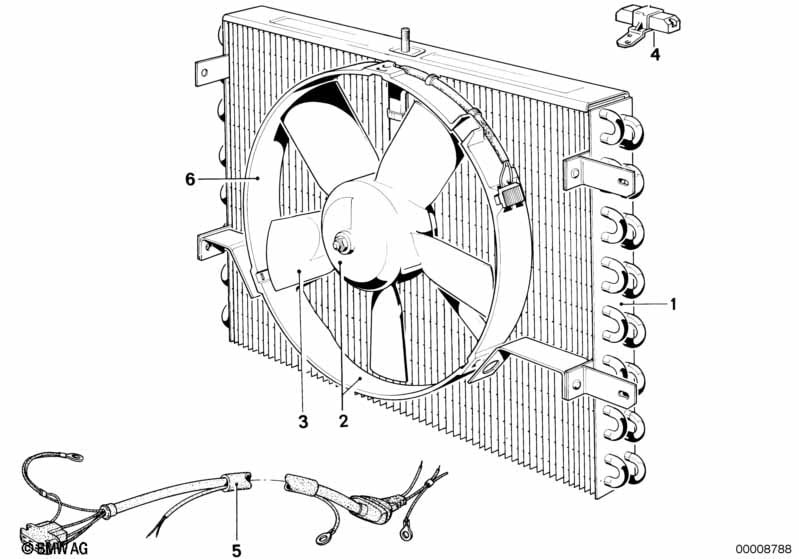

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | 1 | 06/1987 | 64531380979 | $574.00 | Shop at ECS Tuning | ||||
| 01 | Condenser | 1 | 06/1987 | 64531380979 | $574.00 | Shop at ECS Tuning | ||||
| 02 | Blower unit | 1 | 64541381339 | ENDED | Shop at ECS Tuning | |||||
| 02 | Additional fan | 1 | 06/1987 | 64541392913 | $348.67 | Shop at ECS Tuning | ||||
| 02 | Additional fan | 1 | 06/1987 | 64541392913 | $348.67 | Shop at ECS Tuning | ||||
| 03 | Fan wheel | BOSCH | 1 | 17401362100 | $74.80 | Shop at ECS Tuning | ||||
| 04 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 04 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning | ||||
| 06 | Fan shroud | MAGNA | 1 | 09/1986 | 64541381649 | $59.45 | ENDED | Shop at ECS Tuning | ||
| 06 | Fan shroud | MAGNA | 1 | 09/1986 | 64541381649 | $59.45 | ENDED | Shop at ECS Tuning | ||
| 06 | Fan shroud | BOSCH | 1 | 09/1986 | 64541381650 | $130.21 | ENDED | Shop at ECS Tuning | ||
| 06 | Fan shroud | BOSCH | 1 | 09/1986 | 64541381650 | $130.21 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Climate capacitor/additional blower?
- This technical diagram illustrates the Climate capacitor/additional blower within the Heater and Air Conditioning group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Condenser (Part #64531380979).
- Which models use the hardware listed in this Climate capacitor/additional blower?
- The hardware and components featured in the Climate capacitor/additional blower are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Condenser (64531380979) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Climate capacitor/additional blower assembly?
- Each item in the Climate capacitor/additional blower corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Condenser by locating its position on the schematic, which then links to the official BMW part number 64531380979 for the Heater and Air Conditioning section.
