Air conditioning for BMW 7 Series E23 735i (1985)

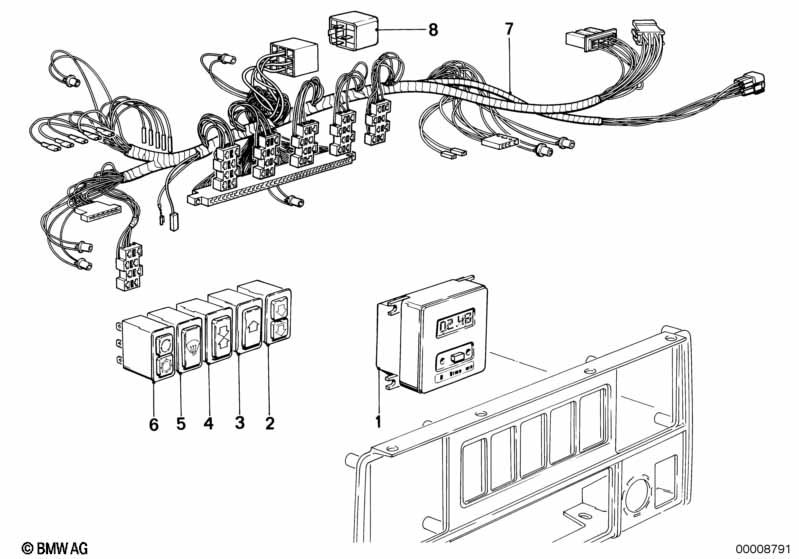

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Digital clock | 1 | 01/1982 | 62131368783 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 01/1982 | 62131372736 | $3.89 | Shop at ECS Tuning | ||||
| -- | Holder | 1 | 01/1982 | 62131372737 | $2.61 | ENDED | Shop at ECS Tuning | |||
| 02 | Switch air distribution lower | 1 | 10/1980 | 61311366497 | $44.03 | Shop at ECS Tuning | ||||
| 03 | Switch air distribution upper | 1 | 10/1980 | 61311366488 | $81.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Switch air distribution center | 1 | 10/1980 | 61311366491 | $39.83 | Shop at ECS Tuning | ||||
| 05 | Switch defrost | 1 | 10/1980 | 61311366485 | $74.22 | Shop at ECS Tuning | ||||
| 06 | Switch air conditioning | 1 | 10/1980 | 61311366473 | $49.70 | Shop at ECS Tuning | ||||
| 07 | Wiring heater control | 1 | 01/1982 | 61111371154 | ENDED | Shop at ECS Tuning | ||||
| 08 | Relay, change-over contact,signal violet | 1 | 10/1980 | 61361388911 | $13.96 | Shop at ECS Tuning | ||||
