Heater control for BMW 7 Series E23 732i (1982)

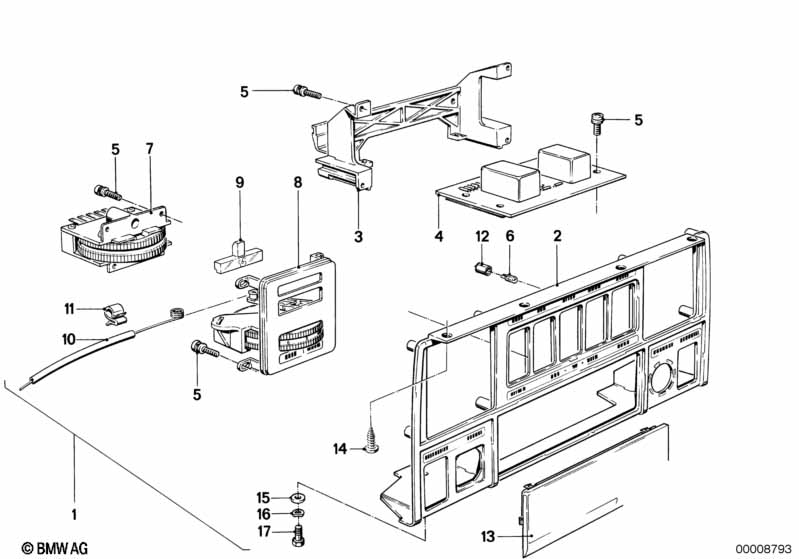

This Heater control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Panel | (DEUTSCH) | 1 | 08/1979 | 64111367602 | $130.57 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel | (ENGLISH) | 1 | 08/1979 | 64111367603 | $165.18 | ENDED | Shop at ECS Tuning | ||
| 02 | Panel | (FRANCAISE) | 1 | 08/1979 | 64111375077 | ENDED | Shop at ECS Tuning | |||
| 02 | Panel | (ITALIANO) | 1 | 08/1979 | 64111375080 | ENDED | Shop at ECS Tuning | |||
| 02 | Panel | (ESPANOL) | 1 | 08/1979 | 64111375090 | ENDED | Shop at ECS Tuning | |||
| 03 | Cable holder | 1 | 08/1979 | 64111367611 | $23.16 | ENDED | Shop at ECS Tuning | |||
| 04 | Printed circuit board f heater control | 1 | 08/1979 | 64111367612 | $143.96 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head screw | M3X10-4.8-H-ZN | X | 08/1979 | 07119907604 | $0.42 | Shop at ECS Tuning | |||
| 06 | Bulb | 12V 1,2W | X | 08/1979 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 07 | Switch blower | 1 | 08/1979 | 64111367604 | $89.32 | Shop at ECS Tuning | ||||
| 08 | Heater control | (DEUTSCH) | 1 | 08/1979 | 64111367606 | $135.04 | Shop at ECS Tuning | |||
| 08 | Heater control | (ENGLISH) | 1 | 08/1979 | 64111368078 | $135.27 | ENDED | Shop at ECS Tuning | ||
| 08 | Heater control | (FRANCAISE) | 1 | 08/1979 | 64111374672 | Shop at ECS Tuning | ||||
| 08 | Heater control | (ITALIANO) | 1 | 08/1979 | 64111374682 | ENDED | Shop at ECS Tuning | |||
| 08 | Heater control | (ESPANOL) | 1 | 08/1979 | 64111374692 | $135.04 | ENDED | Shop at ECS Tuning | ||
| 09 | Prisma | 1 | 08/1979 | 64111367610 | $11.05 | ENDED | Shop at ECS Tuning | |||
| 10 | Bowden cable temperature control | 1 | 08/1979 | 64111367614 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 11 | Clamp | 1 | 08/1979 | 64111367615 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Bulb socket | 7 | 08/1979 | 64111366170 | $2.37 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 08/1979 | 64111362803 | ENDED | Shop at ECS Tuning | ||||
| 14 | Recessed oval head sheet-metal screw | ST3,5X13 | 4 | 08/1979 | 07119902578 | $0.36 | Shop at ECS Tuning | |||
| 15 | Washer | A6,4-200HV-ZNS3 | 2 | 08/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 16 | Spring washer Black | B6-ZN | 2 | 08/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 16 | Washer | 5.3-140 HV-ZNS | 2 | 08/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 16 | Wave washer | B6-ZNS3 | 2 | 08/1979 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 17 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 08/1979 | 07119905524 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Heater control?
- This technical diagram illustrates the Heater control within the Heater and Air Conditioning group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Panel (Part #64111367602).
- Which models use the hardware listed in this Heater control?
- The hardware and components featured in the Heater control are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the Panel (64111367602) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater control assembly?
- Each item in the Heater control corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the Panel by locating its position on the schematic, which then links to the official BMW part number 64111367602 for the Heater and Air Conditioning section.
